NCE6080K - N-Channel Enhancement Mode Power MOSFET

Description

The NCE6080K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

It can be used in a wide variety of applications.

Features

VDS =60V,ID =80A RDS(ON).

NCE Power Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	NCE6080K
Manufacturer	NCE Power Semiconductor
File Size	468.00 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	NCE6080K Datasheet

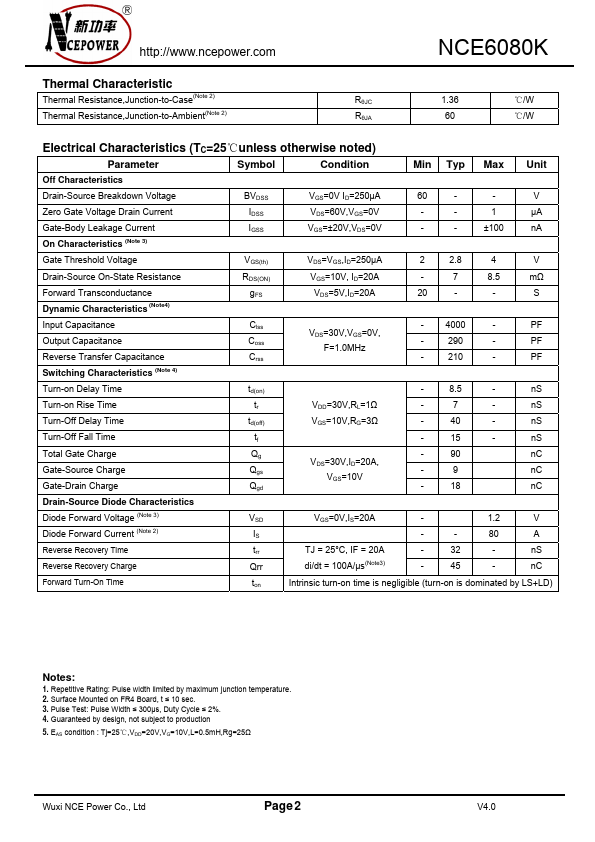

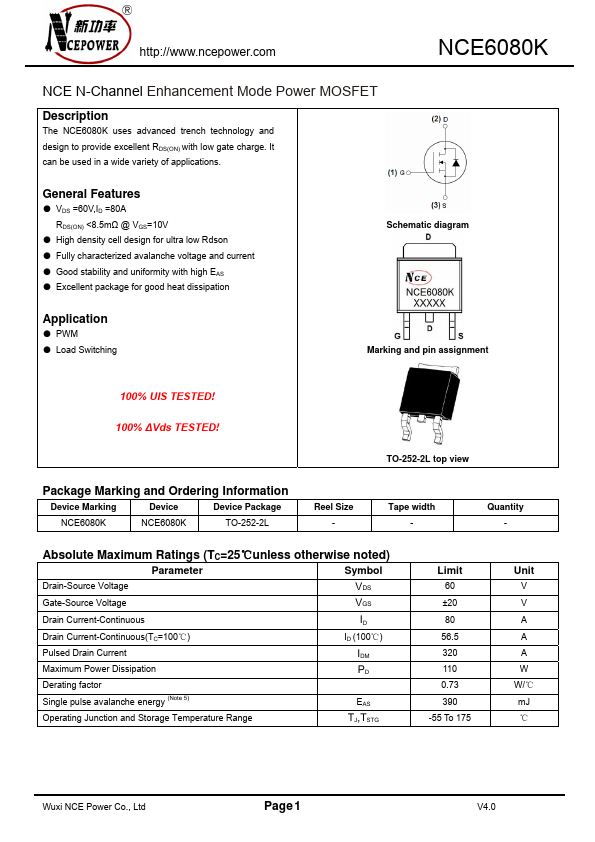

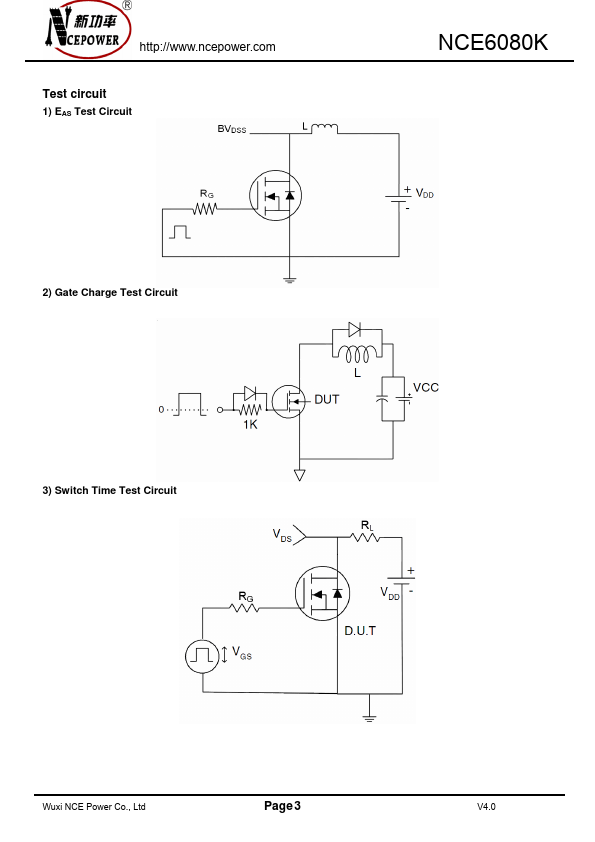

Additional preview pages of the NCE6080K datasheet.

📁 Similar Datasheet

NCE6003 - NCE N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6005AS - Dual N-Channel MOSFET (VBsemi)
NCE6005R - NCE N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6005S - N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6005S - Dual N-Channel MOSFET (VBsemi)
NCE6008AS - N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6012AS - N-Channel 60V MOSFET (VBsemi)
NCE6020I - NCE N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6020K - NCE N-Channel Enhancement Mode Power MOSFET (NCE Power)
NCE6020L - NCE N-Channel Enhancement Mode Power MOSFET (NCE Power)

Other Datasheets by NCE Power Semiconductor

NCE6080A - N-Channel Enhancement Mode Power MOSFET
NCE6003M - N-Channel Enhancement Mode Power MOSFET
NCE6003X - N-Channel Enhancement Mode Power MOSFET
NCE6003XY - N-Channel Enhancement Mode Power MOSFET
NCE6003Y - N-Channel Enhancement Mode Power MOSFET
NCE6005AR - N-Channel Enhancement Mode Power MOSFET
NCE6005AS - N-Channel Enhancement Mode Power MOSFET
NCE6007S - N-Channel Enhancement Mode Power MOSFET

Full PDF Text Transcription

Click to expand full text

http://www.ncepower.com NCE6080K NCE N-Channel Enhancement Mode Power MOSFET Description The NCE6080K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. General Features ● VDS =60V,ID =80A RDS(ON) <8.

Published: Jun 2, 2018 |
