LMN200B02 - 200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET

DIODES

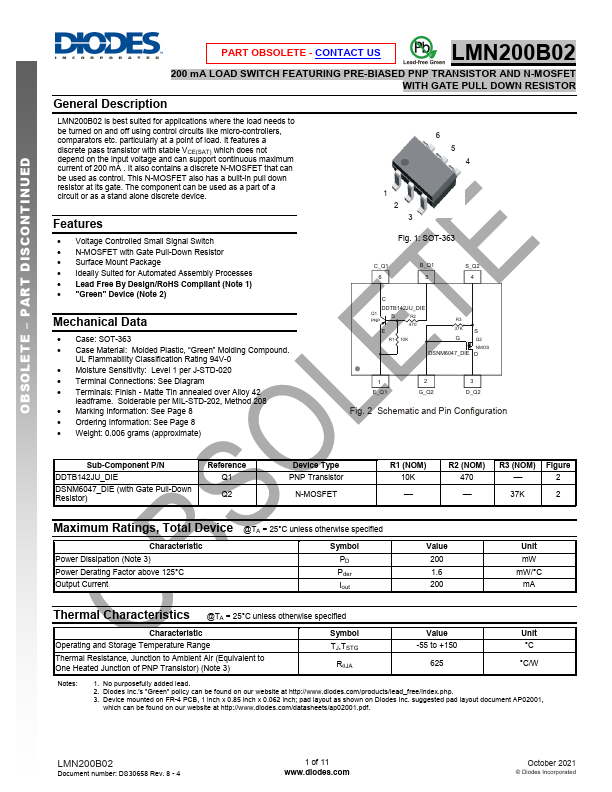

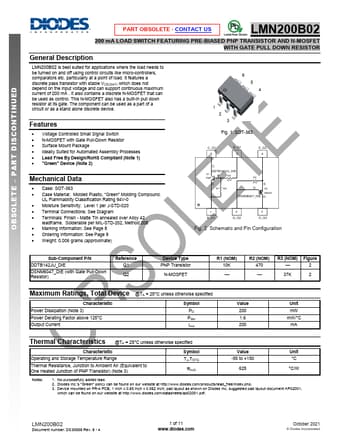

The LMN200B02 by DIODES is a 200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

LMN200B02 200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET by DIODES - Datasheet Preview — Official preview page of the **LMN200B02** 200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET datasheet (DIODES).

Datasheet Details

Part number	LMN200B02
Manufacturer	DIODES
File Size	435.27 KB
Description	200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET
Datasheet	LMN200B02-DIODES.pdf

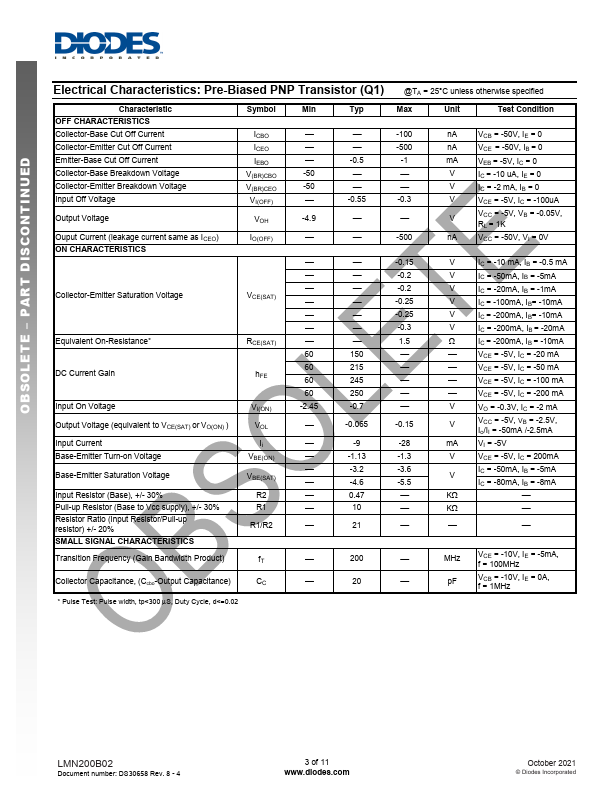

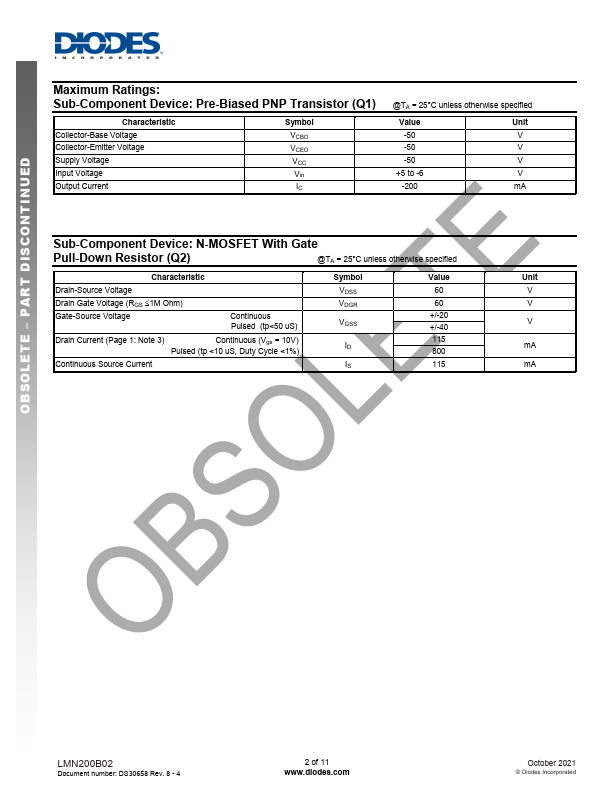

Additional preview pages of the LMN200B02 datasheet.

LMN200B02 Product details

Description

LMN200B02 is best suited for applications where the load needs to be turned on and off using control circuits like micro-controllers, comparators etc.

Features

a discrete pass transistor with stable VCE(SAT) which does not depend on the input voltage and can support continuous maximum current of 200 mA . It also contains a discrete N-MOSFET that can be used as control. This N-MOSFET also has a built-in pull down resistor at its gate. The component can be used as a part of a circuit or as a stand alone discrete device. Features.
Voltage Controlled Small Signal Switch.
N-MOSFET with Gate Pull-Down Resistor.
Surface Mount Packag.
