LMN22N10XF - 100V N-Channel MOSFET

The LMN22N10XF by LFC semi is a 100V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

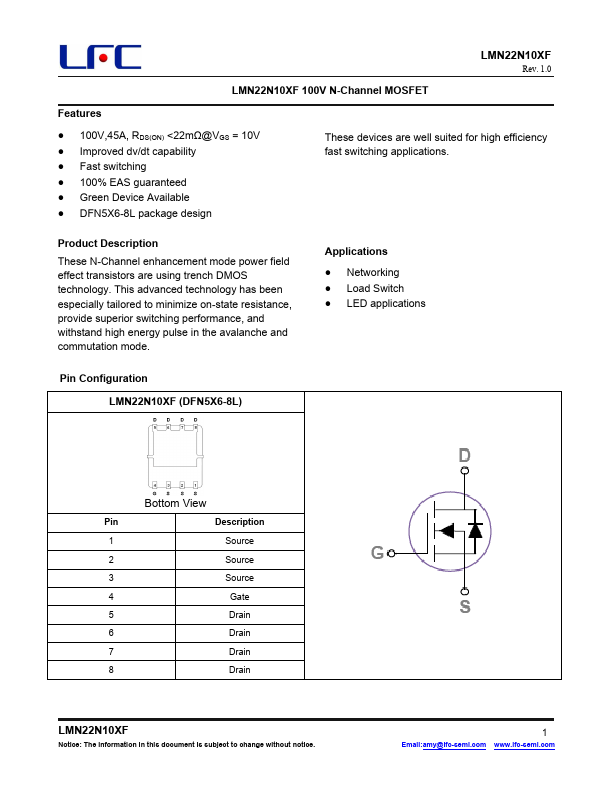

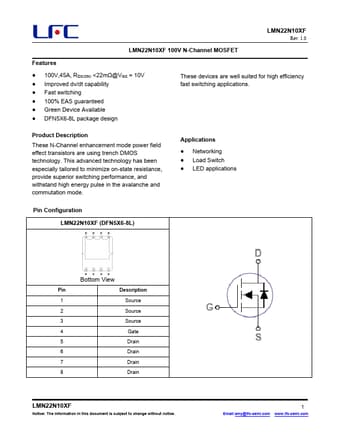

Official preview page of the LMN22N10XF 100V N-Channel MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMN22N10XF
Manufacturer LFC semi
File Size 659.21 KB
Description 100V N-Channel MOSFET
Datasheet download datasheet LMN22N10XF-LFCsemi.pdf

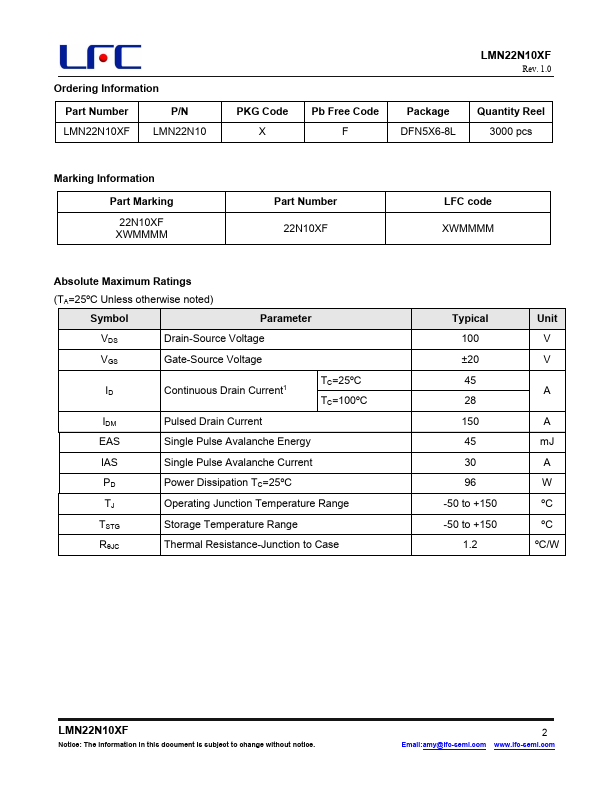

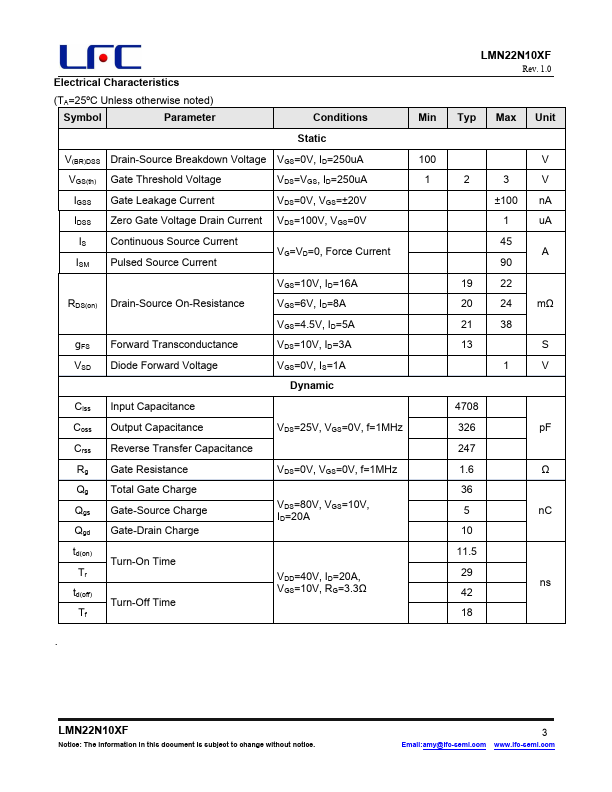

Additional preview pages of the LMN22N10XF datasheet.

LMN22N10XF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Networking Load Switch LED applications Pin Configuration LMN22N10XF (DFN5X6-8L) Bottom View Pin Description 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Dra

Features
