LMN0910P - 100V N-Channel MOSFET

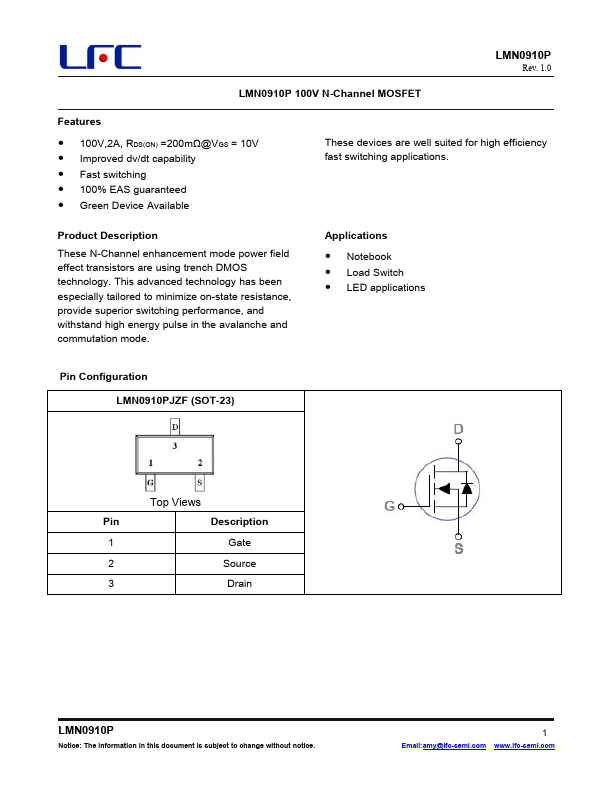

The LMN0910P by LFC semi is a 100V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMN0910P
Manufacturer	LFC semi
File Size	524.56 KB
Description	100V N-Channel MOSFET
Datasheet	LMN0910P-LFCsemi.pdf

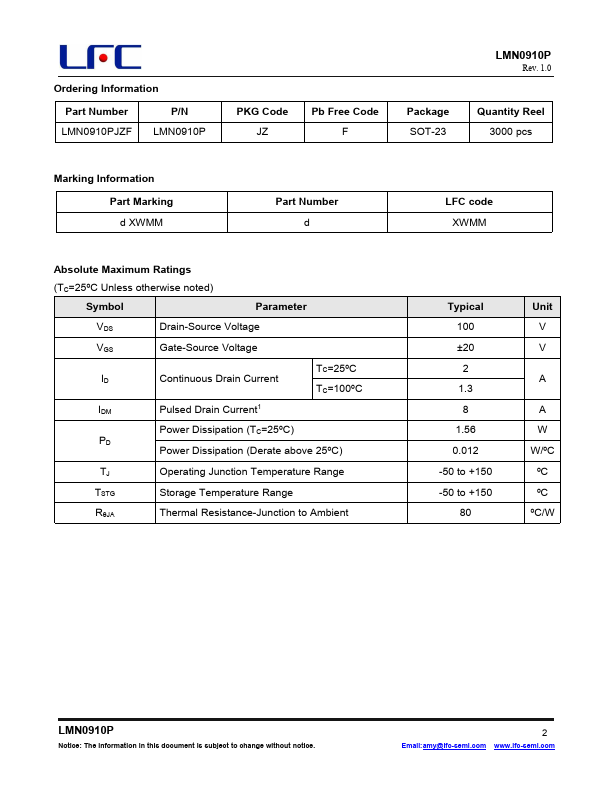

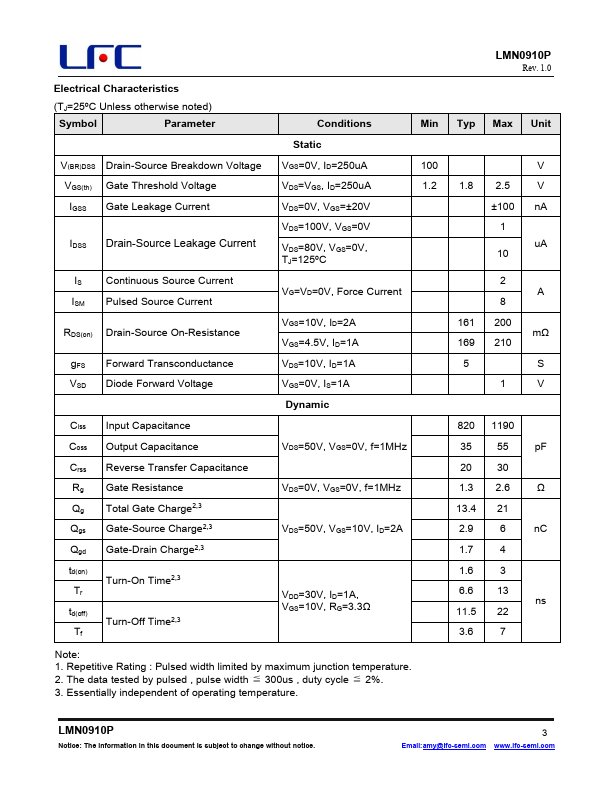

Additional preview pages of the LMN0910P datasheet.

LMN0910P Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Notebook Load Switch LED applications Pin Configuration LMN0910PJZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Drain LMN0910P Notice: The information i

Features

100V,2A, RDS(ON) =200mΩ@VGS = 10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available These devices are well suited for high efficiency fast switching.
