LMN200B01 - 200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET

Name: LMN200B01
SKU: LMN200B01-1581698

DIODES

📥 Download Datasheet

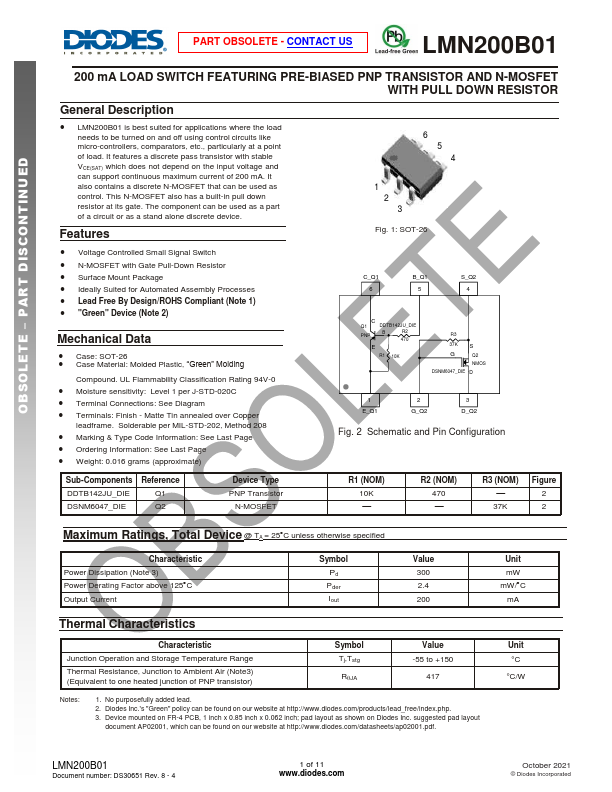

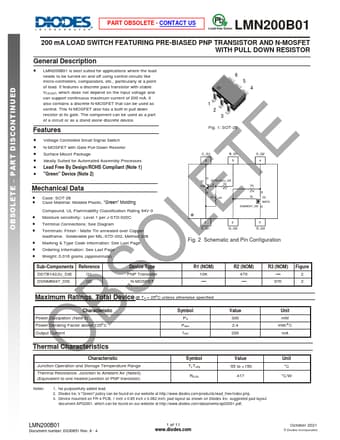

LMN200B01 Datasheet Preview — Preview of LMN200B01 PDF

Datasheet Details

Part number	LMN200B01
Manufacturer	DIODES
File Size	603.92 KB
Description	200mA LOAD SWITCH FEATURING PRE-BIASED PNP TRANSISTOR AND N-MOSFET
Datasheet	LMN200B01-DIODES.pdf

LMN200B01 Product details

Description

LMN200B01 is best suited for applications where the load needs to be turned on and off using control circuits like micro-controllers, comparators, etc., particularly at a point of load.It

Features

a discrete pass transistor with stable VCE(SAT) which does not depend on the input voltage and can support continuous maximum current of 200 mA. It also contains a discrete N-MOSFET that can be used as control. This N-MOSFET also has a built-in pull down resistor at its gate. The component can be used as a part of a circuit or as a stand alone discrete device. Features.
Voltage Controlled Small Signal Switch.
N-MOSFET with Gate Pull-Down Resistor.
Surface Mount Package.
Ideal.
