LMN2730EX7F - 20V Dual N-Channel MOSFET

📥 Download Datasheet

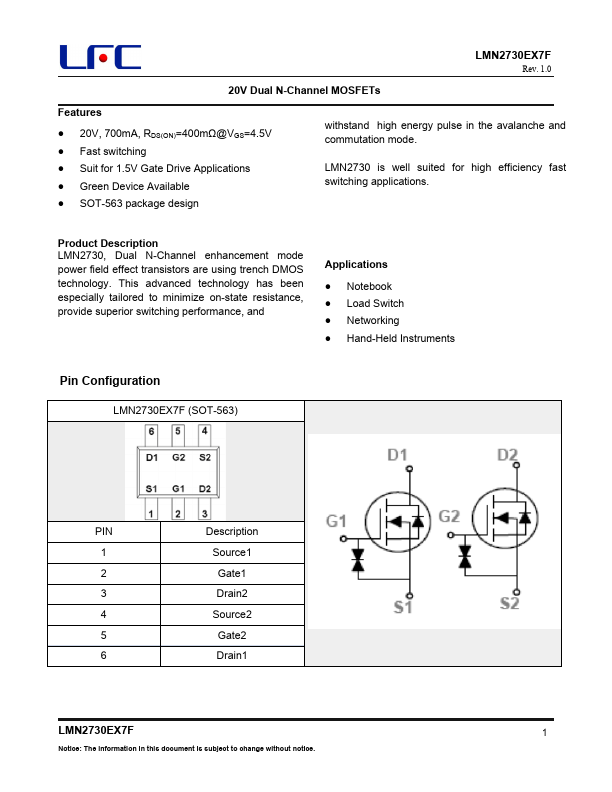

Preview of LMN2730EX7F PDF

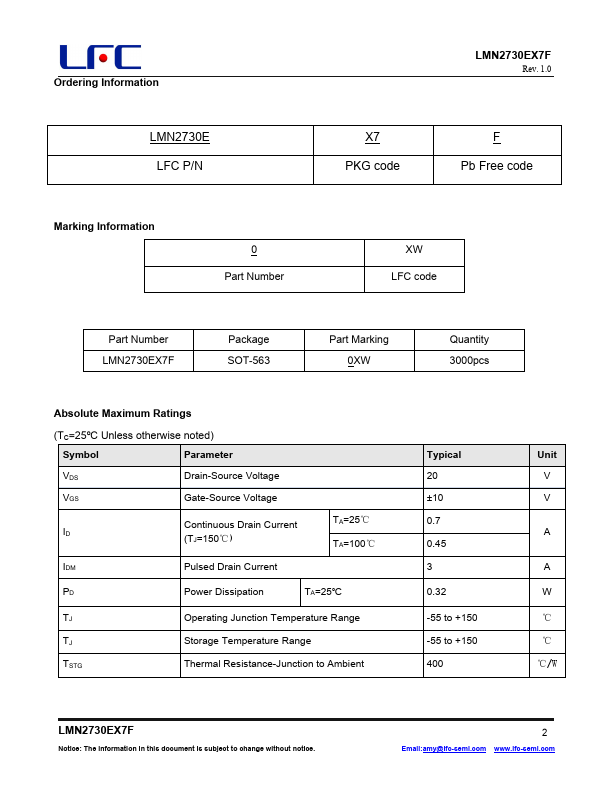

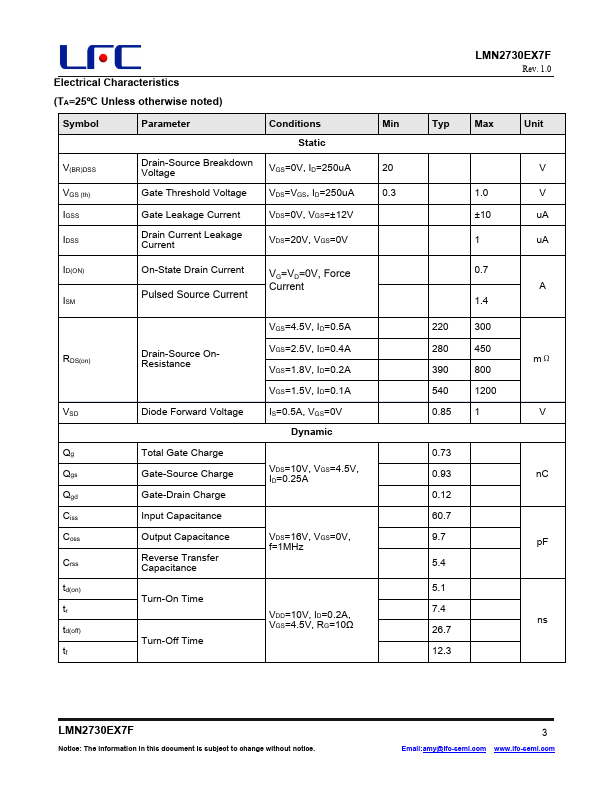

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LMN2730EX7F
Manufacturer LFC semi
File Size 898.34 KB
Description 20V Dual N-Channel MOSFET
Datasheet download datasheet LMN2730EX7F-LFCsemi.pdf

LMN2730EX7F Product details

Description

LMN2730, Dual N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Notebook Load Switch Networking Hand-Held Instruments Pin Configuration LMN2730EX7F (SOT-563) PIN Description 1 Source1 2 Gate1 3 Drain2 4 Source2 5 Gate2 6 Drain1 LMN2730EX7F 1 Notice: The information in th

Features
