LMN2130JZF - 20V N-Channel MOSFET

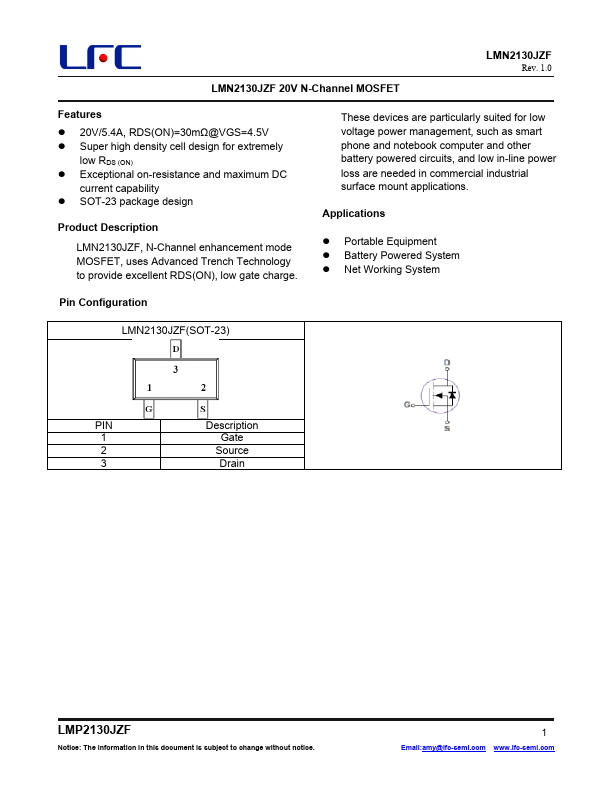

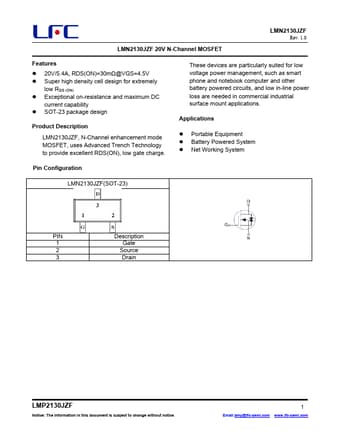

The LMN2130JZF by LFC semi is a 20V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMN2130JZF
Manufacturer	LFC semi
File Size	490.98 KB
Description	20V N-Channel MOSFET
Datasheet	LMN2130JZF-LFCsemi.pdf

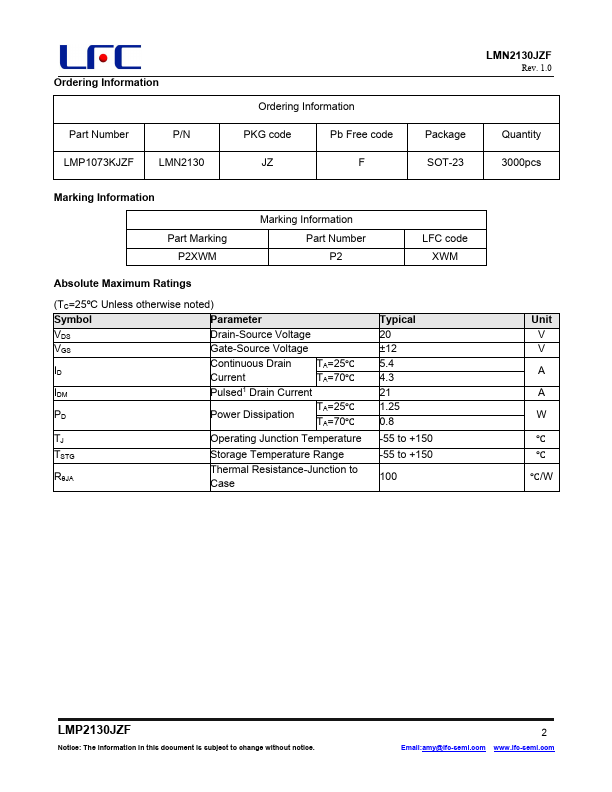

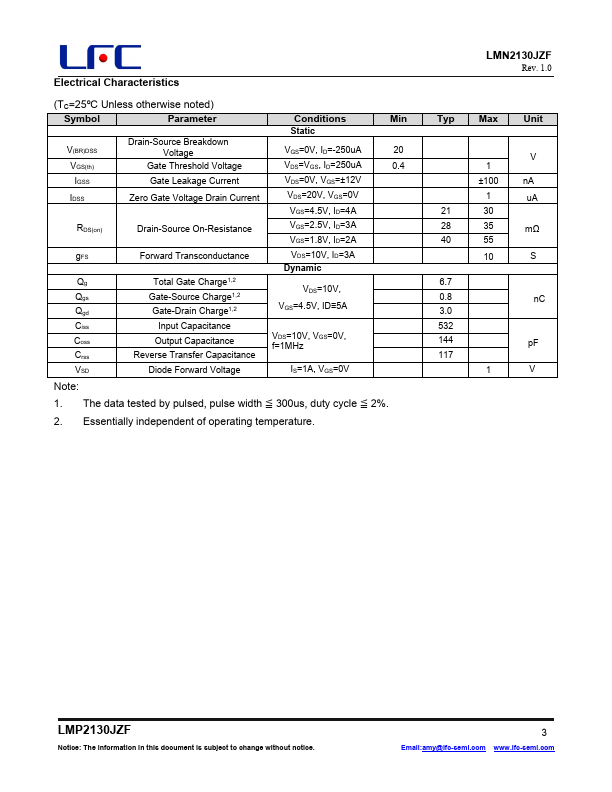

Additional preview pages of the LMN2130JZF datasheet.

LMN2130JZF Product details

Description

LMN2130JZF, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Portable Equipment Battery Powered System Net Working System Pin Configuration LMN2130JZF(SOT-23)

Features

20V/5.4A, RDS(ON)=30mΩ@VGS=4.5V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
SOT-23 package design Product.
