LMN22N10DF - 100V N-Channel MOSFET

Name: LMN22N10DF
SKU: LMN22N10DF-1583444

📥 Download Datasheet

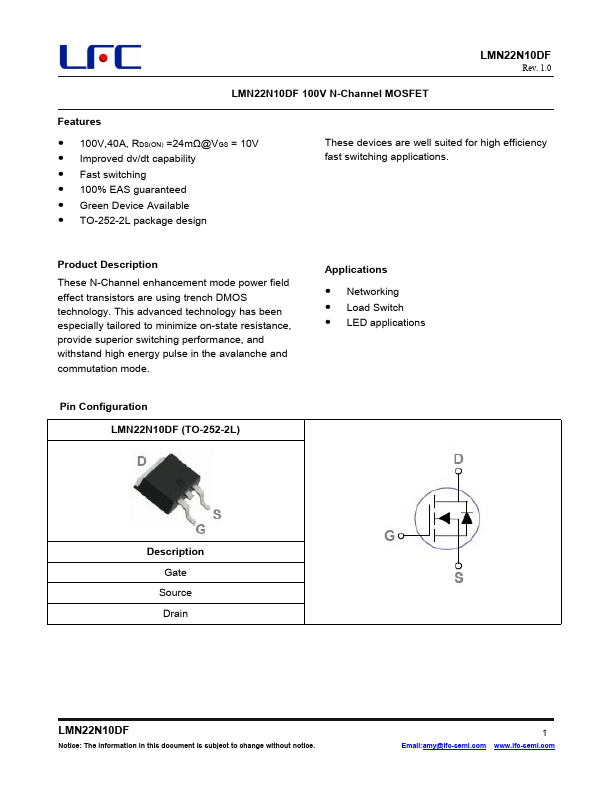

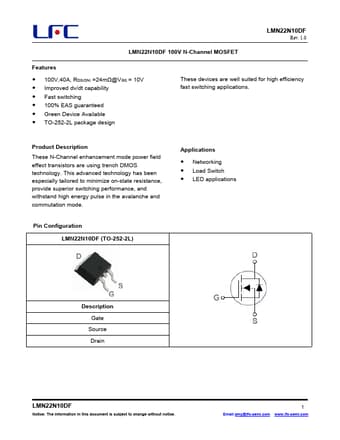

LMN22N10DF Datasheet Preview — Preview of LMN22N10DF PDF

Datasheet Details

Part number	LMN22N10DF
Manufacturer	LFC semi
File Size	737.28 KB
Description	100V N-Channel MOSFET
Datasheet	LMN22N10DF-LFCsemi.pdf

LMN22N10DF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. Networking Load Switch LED applications Description Gate Source Drain LMN22N10DF Notice: The information in this document is subj

Features

100V,40A, RDS(ON) =24mΩ@VGS = 10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available.
TO-252-2L package design These devices are well suited for high efficiency fast switching.
