LMN400B01 - 400mA LOAD SWITCH FEATURING PNP TRANSISTOR AND N-MOSFET

DIODES

The LMN400B01 by DIODES is a 400mA LOAD SWITCH FEATURING PNP TRANSISTOR AND N-MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

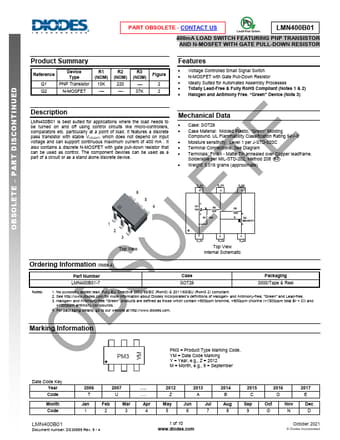

LMN400B01 400mA LOAD SWITCH FEATURING PNP TRANSISTOR AND N-MOSFET by DIODES - Datasheet Preview — Official preview page of the **LMN400B01** 400mA LOAD SWITCH FEATURING PNP TRANSISTOR AND N-MOSFET datasheet (DIODES).

Datasheet Details

Part number	LMN400B01
Manufacturer	DIODES
File Size	425.99 KB
Description	400mA LOAD SWITCH FEATURING PNP TRANSISTOR AND N-MOSFET
Datasheet	LMN400B01-DIODES.pdf

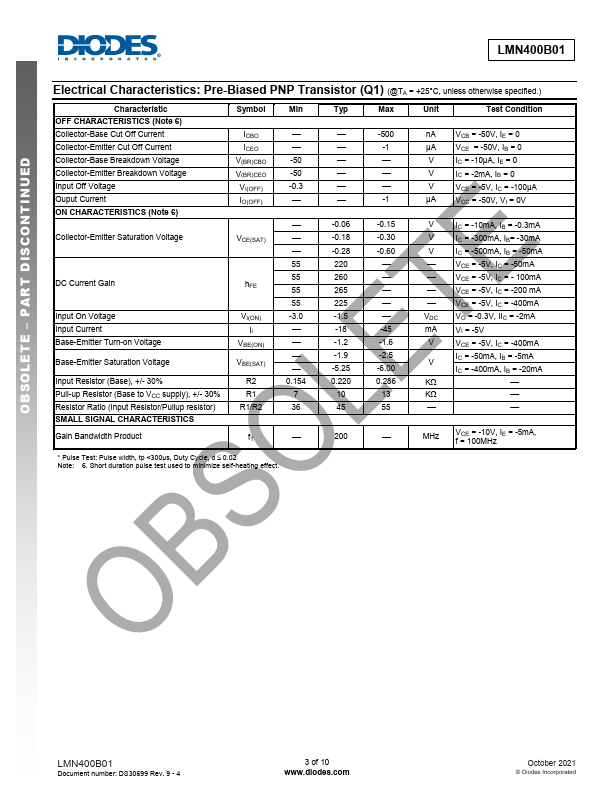

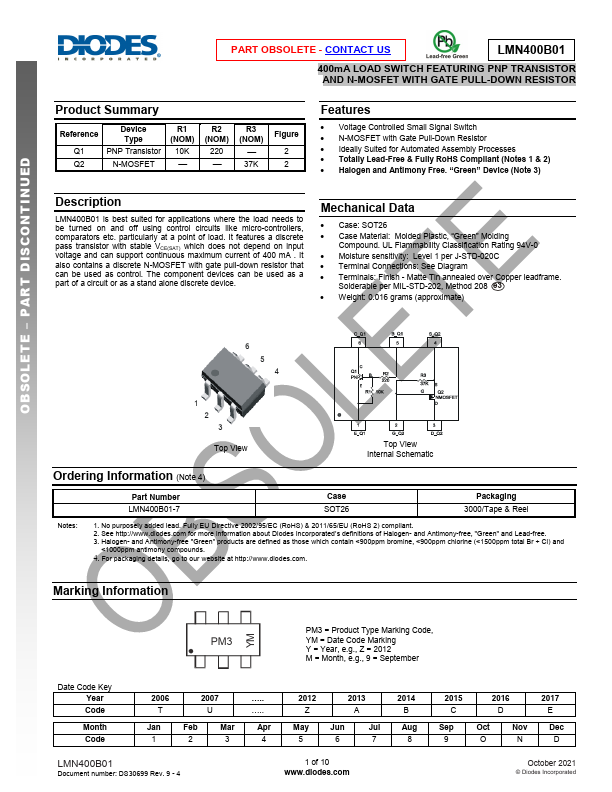

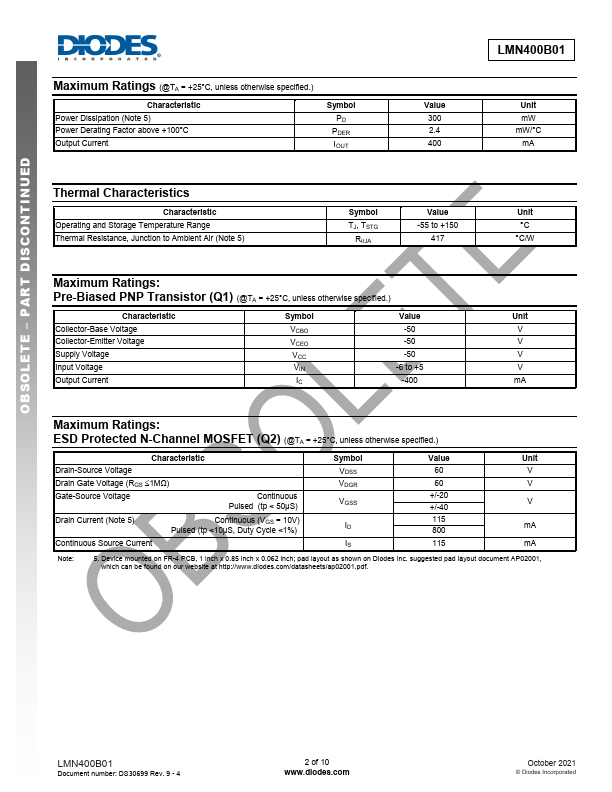

Additional preview pages of the LMN400B01 datasheet.

LMN400B01 Product details

Description

LMN400B01 is best suited for applications where the load needs to be turned on and off using control circuits like micro-controllers, comparators etc.

Features

Voltage Controlled Small Signal Switch.
N-MOSFET with Gate Pull-Down Resistor.
Ideally Suited for Automated Assembly Processes.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
