LMN4184JZF - 40V N-Channel MOSFET

The LMN4184JZF by LFC semi is a 40V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMN4184JZF
Manufacturer	LFC semi
File Size	436.48 KB
Description	40V N-Channel MOSFET
Datasheet	LMN4184JZF-LFCsemi.pdf

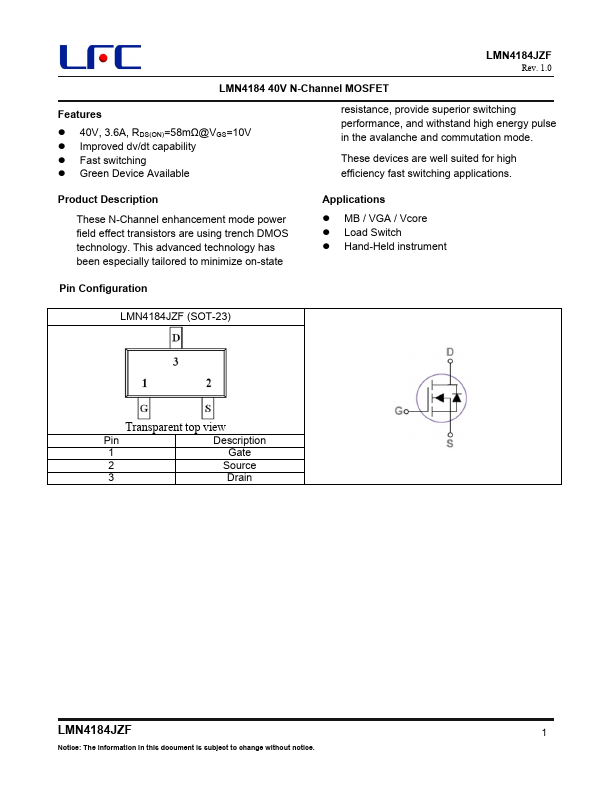

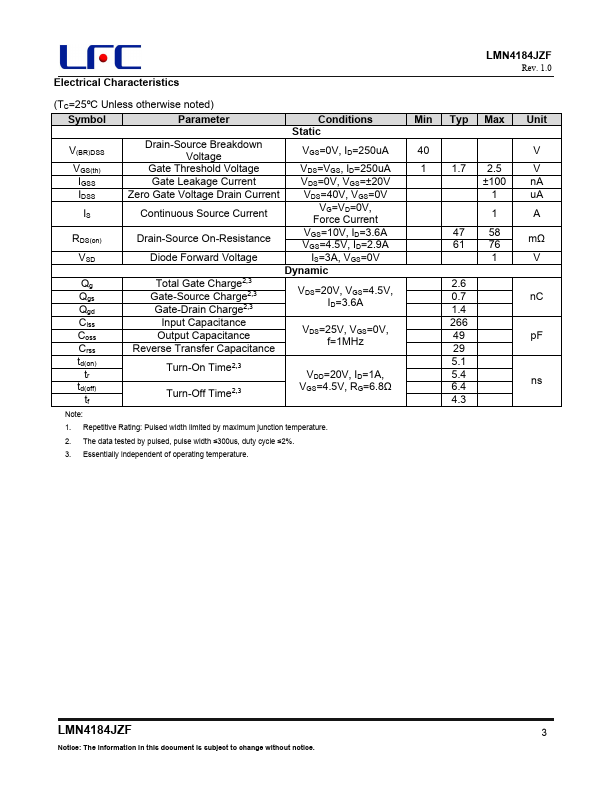

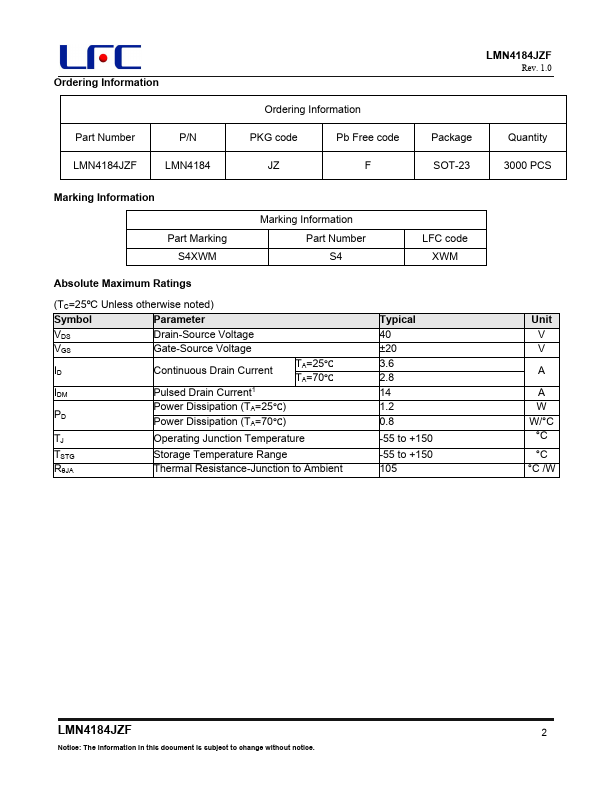

Additional preview pages of the LMN4184JZF datasheet.

LMN4184JZF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore Load Switch Hand-Held instrument Pin Configuration LMN4184JZF (SOT-23) Transparent top view Pin Description 1 Gate 2 Source 3 Drain LMN4184JZF 1 Notice: The information in this document is subject to change without notice.Ordering Information Part Number LMN418

Features

40V, 3.6A, RDS(ON)=58mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
Green Device Available resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
