LMN400E01 - PNP TRANSISTOR AND ESD PROTECTED N-MOSFET

DIODES

The LMN400E01 by DIODES is a PNP TRANSISTOR AND ESD PROTECTED N-MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

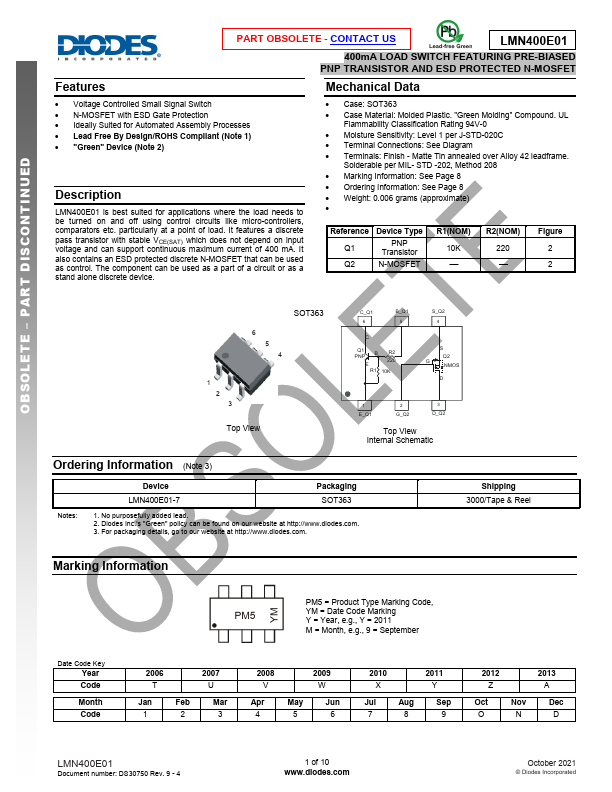

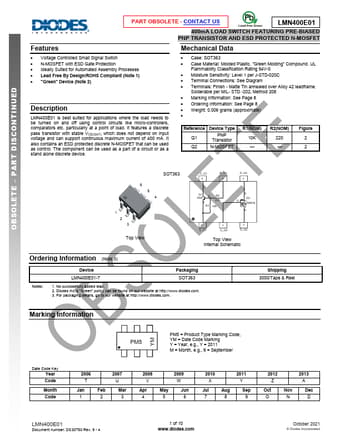

LMN400E01 PNP TRANSISTOR AND ESD PROTECTED N-MOSFET by DIODES - Datasheet Preview — Official preview page of the **LMN400E01** PNP TRANSISTOR AND ESD PROTECTED N-MOSFET datasheet (DIODES).

Datasheet Details

Part number	LMN400E01
Manufacturer	DIODES
File Size	414.41 KB
Description	PNP TRANSISTOR AND ESD PROTECTED N-MOSFET
Datasheet	LMN400E01-DIODES.pdf

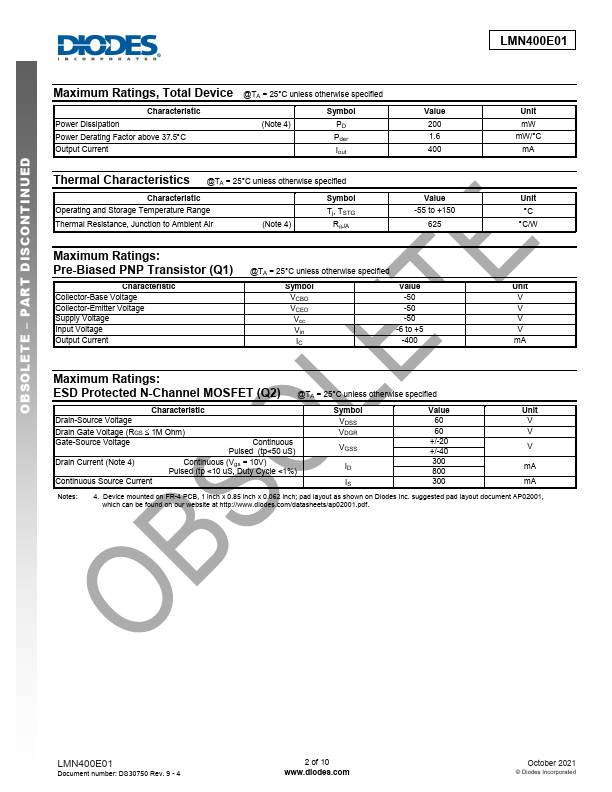

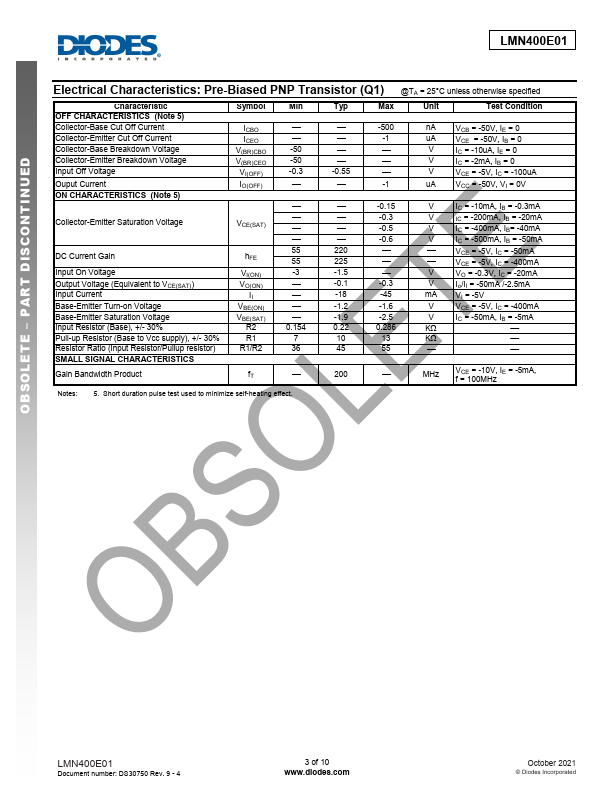

Additional preview pages of the LMN400E01 datasheet.

LMN400E01 Product details

Description

LMN400E01 is best suited for applications where the load needs to be turned on and off using control circuits like micro-controllers, comparators etc.

Features

Mechanical Data.
Voltage Controlled Small Signal Switch.
N-MOSFET with ESD Gate Protection.
Ideally Suited for Automated Assembly Processes.
Lead Free By Design/ROHS Compliant (Note 1).
"Green" Device (Note 2).
