C3M0032120J2 Silicon Carbide Power MOSFET

Wolfspeed

C3M0032120J2 Description

C3M0032120J2 Silicon Carbide Power MOSFET N-Channel Enhancement Mode .

C3M0032120J2 Features

* 3rd generation SiC MOSFET technology
* Optimized package with separate driver source pin
* Larger drain tab for better thermal performance
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances

C3M0032120J2 Applications

* Motor Control
* EV Battery Chargers
* High Voltage DC/DC Converters Package Tab Drain 1234567 Drain (TAB) Gate (Pin 1) Driver Source (Pin 2) Power Source (Pin 3,4,5,6,7) Part Number C3M0032120J2 Package TO-263-7XL Marking C3M0032120J2 Key Parameters Parameter Dr

📥 Download Datasheet

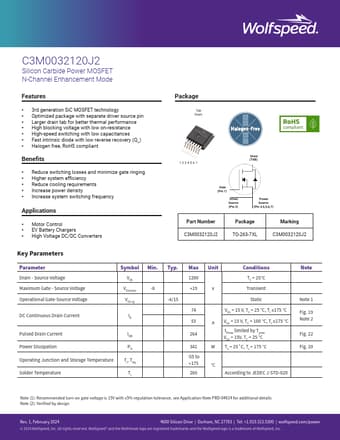

C3M0032120J2 Datasheet Preview — Preview of C3M0032120J2 PDF

Datasheet Details

Part number: C3M0032120J2
Manufacturer: Wolfspeed
File Size: 1.21 MB
Datasheet: C3M0032120J2-Wolfspeed.pdf
Description: Silicon Carbide Power MOSFET
