C3M0032120K Silicon Carbide Power MOSFET

CREE

C3M0032120K Description

VDS 1200 V C3M0032120K ID @ 25˚C 63 A Silicon Carbide Power MOSFET TM C3M MOSFET Technology RDS(on) 32 mΩ N-Channel Enhancement Mode .

C3M0032120K Features

* Package
* 3rd generation SiC MOSFET technology
* Optimized package with separate driver source pin
* 8mm of creepage distance between drain and source
* High blocking voltage with low on-resistance
* High-speed switching with low capacitances

C3M0032120K Applications

* Solar inverters
* EV motor drive
* High voltage DC/DC converters
* Switched mode power supplies
* Load switch Part Number C3M0032120K Drain (Pin 1, TAB) Gate (Pin 4) Driver Source (Pin 3) Power Source (Pin 2) Package TO 247-4 Marking C3M0032120K Maxim

📥 Download Datasheet

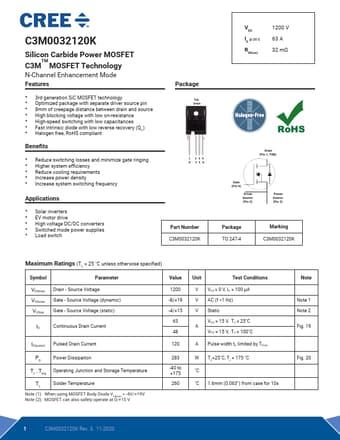

C3M0032120K Datasheet Preview — Preview of C3M0032120K PDF

Datasheet Details

Part number: C3M0032120K
Manufacturer: CREE
File Size: 1.93 MB
Datasheet: C3M0032120K-CREE.pdf
Description: Silicon Carbide Power MOSFET
