GT40G121, Silicon N-Channel IGBT

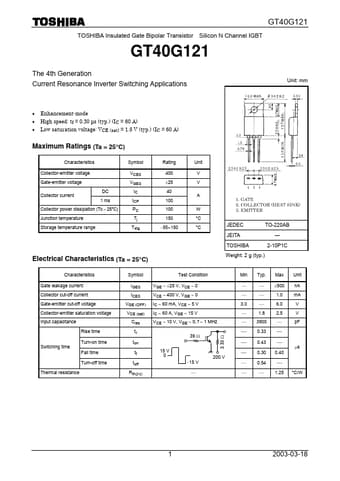

GT40G121 TOSHIBA Insulated Gate Bipolar Transistor Silicon N Channel IGBT GT40G121 The 4th Generation Current Resonance Inverter Switching Applications Unit: mm Enhancement-mode High speed: tf = 0.30 µs (typ.) (IC = 60 A) Low saturation voltage: VCE (sat) = 1.8 V (typ.) (IC = 60 A) Maximum Ratings (Ta = 25°C) Characteristics Collector-emitter voltage Gate-emitter voltage Collector current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg Rating 400 ±25 40 100 100 150 -55~150 Unit
