GT40QR21 - Silicon N-Channel IGBT

Toshiba

📥 Download Datasheet

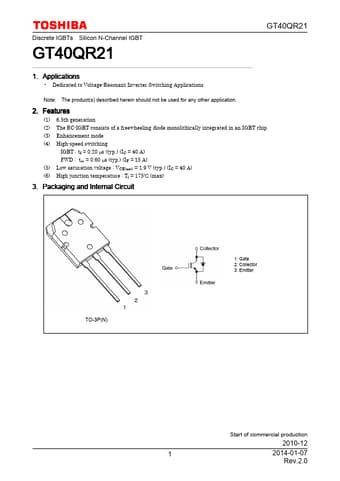

GT40QR21 Datasheet Preview — Preview of GT40QR21 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GT40QR21
Manufacturer	Toshiba
File Size	225.21 KB
Description	Silicon N-Channel IGBT
Datasheet	GT40QR21_Toshiba.pdf

GT40QR21 Product details

Features

(1) 6.5th generation (2) The RC-IGBT consists of a freewheeling diode monolithically integrated in an IGBT chip. (3) Enhancement mode (4) High-speed switching IGBT : tf = 0.20 µs (typ. ) (IC = 40 A) FWD : trr = 0.60 µs (typ. ) (IF = 15 A) (5) Low saturation voltage : VCE(sat) = 1.9 V (typ. ) (IC = 40 A) (6) High junction temperature : Tj = 175 (max) 3. Packaging and Internal Circuit TO-3P(N) 1: Gate 2: Collector 3: Emitter Start of commercial production 2010-12 1 2014-01-07 Rev.2.0 GT40QR21.
