GT40WR21 - Silicon N-Channel IGBT

Toshiba

📥 Download Datasheet

GT40WR21 Datasheet Preview — Preview of GT40WR21 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GT40WR21
Manufacturer	Toshiba
File Size	381.97 KB
Description	Silicon N-Channel IGBT
Datasheet	GT40WR21-Toshiba.pdf

GT40WR21 Product details

Features

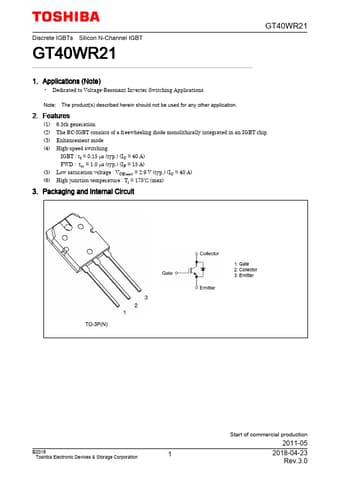

(1) 6.5th generation (2) The RC-IGBT consists of a freewheeling diode monolithically integrated in an IGBT chip. (3) Enhancement mode (4) High-speed switching IGBT : tf = 0.15 µs (typ. ) (IC = 40 A) FWD : trr = 1.0 µs (typ. ) (IF = 15 A) (5) Low saturation voltage : VCE(sat) = 2.9 V (typ. ) (IC = 40 A) (6) High junction temperature : Tj = 175 (max) 3. Packaging and Internal Circuit TO-3P(N) 1: Gate 2: Collector 3: Emitter ©2018 Toshiba Electronic Devices & Storage Corporation 1 Start of comme.
