DXTN07045DFGQ - 45V NPN MEDIUM-POWER TRANSISTOR

Product Overview

DIODES

📥 Download Datasheet

DXTN07045DFGQ 45V NPN MEDIUM-POWER TRANSISTOR by DIODES - Datasheet Preview — Datasheet preview – DXTN07045DFGQ

Datasheet Details

Part number	DXTN07045DFGQ
Manufacturer	DIODES
File Size	642.49 KB
Description	45V NPN MEDIUM-POWER TRANSISTOR
Datasheet	DXTN07045DFGQ Datasheet

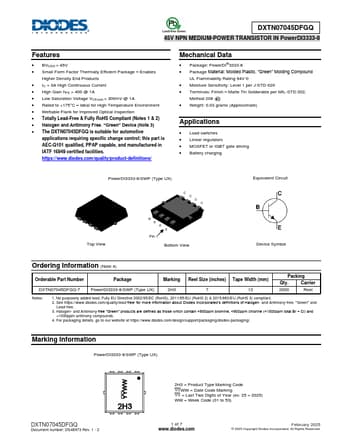

Additional preview pages of the DXTN07045DFGQ datasheet.

Product details

Features

BVCEO > 45V.
Small Form Factor Thermally Efficient Package.
Enables Higher Density End Products.
IC = 3A High Continuous Current.
High Gain hFE > 400 @ 1A.
Low Saturation Voltage VCE(sat) < 300mV @ 1A.
Rated to +175°C.
Ideal for High-Temperature Environment.
Wettable Flank for Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” De.
