DXTN07025BFGQ - 25V NPN MEDIUM-POWER TRANSISTOR

Product Overview

DIODES

📥 Download Datasheet

DXTN07025BFGQ 25V NPN MEDIUM-POWER TRANSISTOR by DIODES - Datasheet Preview — Datasheet preview – DXTN07025BFGQ

Datasheet Details

Part number	DXTN07025BFGQ
Manufacturer	DIODES
File Size	702.69 KB
Description	25V NPN MEDIUM-POWER TRANSISTOR
Datasheet	DXTN07025BFGQ Datasheet

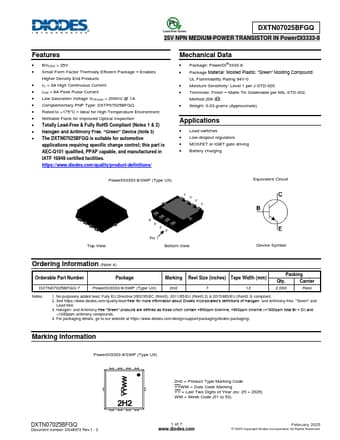

Additional preview pages of the DXTN07025BFGQ datasheet.

Product details

Features

BVCEO > 25V.
Small Form Factor Thermally Efficient Package.
Enables Higher Density End Products.
IC = 3A High Continuous Current.
ICM = 8A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < 200mV @ 1A.
Complementary PNP Type: DXTP07025BFGQ.
Rated to +175°C.
Ideal for High-Temperature Environment.
Wettable Flank for Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 &.
