DXTN07045DFG - 45V NPN MEDIUM POWER HIGH-GAIN TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

DXTN07045DFG 45V NPN MEDIUM POWER HIGH-GAIN TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – DXTN07045DFG

Datasheet Details

Part number	DXTN07045DFG
Manufacturer	DIODES
File Size	818.51 KB
Description	45V NPN MEDIUM POWER HIGH-GAIN TRANSISTOR
Datasheet	DXTN07045DFG Datasheet

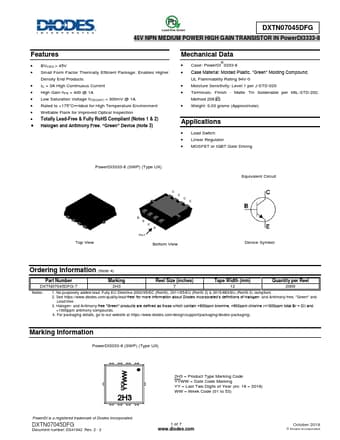

Additional preview pages of the DXTN07045DFG datasheet.

Product details

Features

BVCEO > 45V.
Small Form Factor Thermally Efficient Package. Enables Higher Density End Products.
IC = 3A High Continuous Current.
High Gain hFE > 400 @ 1A.
Low Saturation Voltage VCE(SAT) < 300mV @ 1A.
Rated to +175°C.
Ideal for High Temperature Environment.
Wettable Flank for Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: Powe.
