DXTN07060BFG - 60V NPN HIGH PERFORMANCE TRANSISTOR

Product Overview

Diodes

📥 Download Datasheet

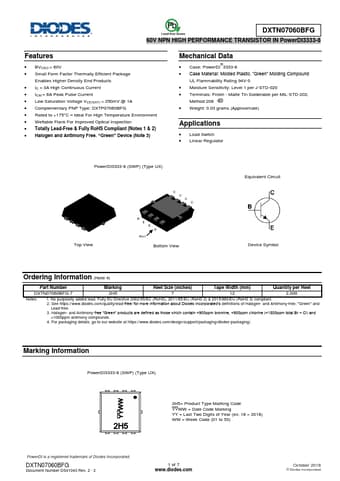

DXTN07060BFG 60V NPN HIGH PERFORMANCE TRANSISTOR by Diodes - Datasheet Preview — Datasheet preview – DXTN07060BFG

Datasheet Details

Part number	DXTN07060BFG
Manufacturer	DIODES
File Size	739.40 KB
Description	60V NPN HIGH PERFORMANCE TRANSISTOR
Datasheet	DXTN07060BFG Datasheet
Additional preview pages of the DXTN07060BFG datasheet.

Product details

Features

BVCEO > 60V.
Small Form Factor Thermally Efficient Package Enables Higher Density End Products.
IC = 3A High Continuous Current.
ICM = 6A Peak Pulse Current.
Low Saturation Voltage VCE(SAT) < 250mV @ 1A.
Complementary PNP Type: DXTP07060BFG.
Rated to +175°C.
Ideal For High Temperature Environment.
Wettable Flank For Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” De.
