DXT13003DG - NPN HIGH VOLTAGE POWER TRANSISTOR

Features

  • BVCEO > 450V.
  • BVCES > 700V.
  • BVEBO > 9V.
  • IC = 1.5A high Continuous Collector Current.
  • Integrated Collector-Emitter Diode to act as free-wheeling diode.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
  • Case: SOT223.
  • Case Material: Molded Plastic. “Green” Molding Compound UL Flammability Rating 94V-0.
  • Moisture Sensitivity: Level 1 per.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DXT2222A NPN Transistor Dc Components
DXT2907A NPN Transistor Dc Components
DXT3904 NPN Transistor Dc Components
DXT3906 NPN Transistor Dc Components
DXT5401 NPN Transistor Dc Components

Other Datasheets by Diodes Incorporated

Part Number Description
DXT13003DK NPN HIGH VOLTAGE POWER TRANSISTOR
DXT13003EK NPN HIGH VOLTAGE POWER TRANSISTOR
DXT2010P5 NPN MEDIUM POWER TRANSISTOR
DXT2011P5 NPN MEDIUM POWER TRANSISTOR
DXT2011P5Q 100V NPN TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

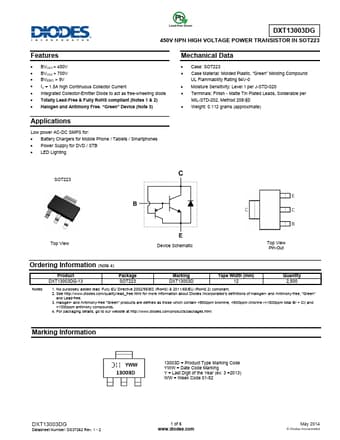

DXT13003DG 450V NPN HIGH VOLTAGE POWER TRANSISTOR IN SOT223 Features • BVCEO > 450V • BVCES > 700V • BVEBO > 9V • IC = 1.5A high Continuous Collector Current • Integrated Collector-Emitter Diode to act as free-wheeling diode • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data • Case: SOT223 • Case Material: Molded Plastic. “Green” Molding Compound UL Flammability Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight: 0.
