DXTN03060BFG - 60V NPN TRANSISTOR

Product Overview

DIODES

📥 Download Datasheet

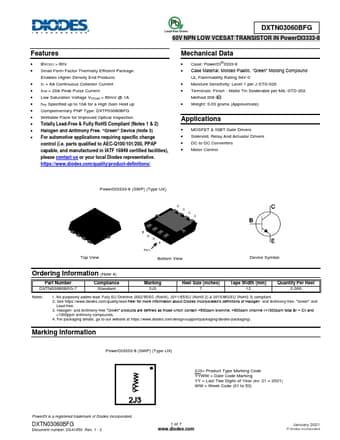

DXTN03060BFG 60V NPN TRANSISTOR by DIODES - Datasheet Preview — Datasheet preview – DXTN03060BFG

Datasheet Details

Part number	DXTN03060BFG
Manufacturer	DIODES
File Size	836.75 KB
Description	60V NPN TRANSISTOR
Datasheet	DXTN03060BFG Datasheet
Additional preview pages of the DXTN03060BFG datasheet.

Product details

Features

BVCEO > 60V.
Small Form Factor Thermally Efficient Package. Enables Higher Density End Products.
IC = 6A Continuous Collector Current.
ICM = 20A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < 60mV @ 1A.
hFE Specified up to 10A for a High Gain Hold up.
Complementary PNP Type: DXTP03060BFG.
Wettable Flank for Improved Optical Inspection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note.
