DXTN07060BFGQ - 60V NPN MEDIUM POWER TRANSISTOR

Features

  • BVCEO > 60V.
  • Small Form Factor Thermally Efficient Package Enables Higher Density End Products.
  • IC = 3A High Continuous Current.
  • ICM = 6A Peak Pulse Current.
  • Low Saturation Voltage VCE(sat) < 250mV @ 1A.
  • Complementary PNP Type: DXTP07060BFGQ.
  • Rated to +175°C.
  • Ideal for High Temperature Environment.
  • Wettable Flank for Improved Optical Inspection.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).

📥 Download Datasheet

📁 Similar Datasheet

  • DXT2222A - NPN Transistor (Dc Components)
  • DXT2907A - NPN Transistor (Dc Components)
  • DXT3904 - NPN Transistor (Dc Components)
  • DXT3906 - NPN Transistor (Dc Components)
  • DXT5401 - NPN Transistor (Dc Components)
  • DXT5551 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR (Dc Components)
  • DXTA13 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR (Dc Components)
  • DXTA42 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR (Dc Components)
  • DXTA44 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR (Dc Components)
  • DXTA92 - TECHNICAL SPECIFICATIONS OF NPN EPITAXIAL PLANAR TRANSISTOR (Dc Components)
Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text

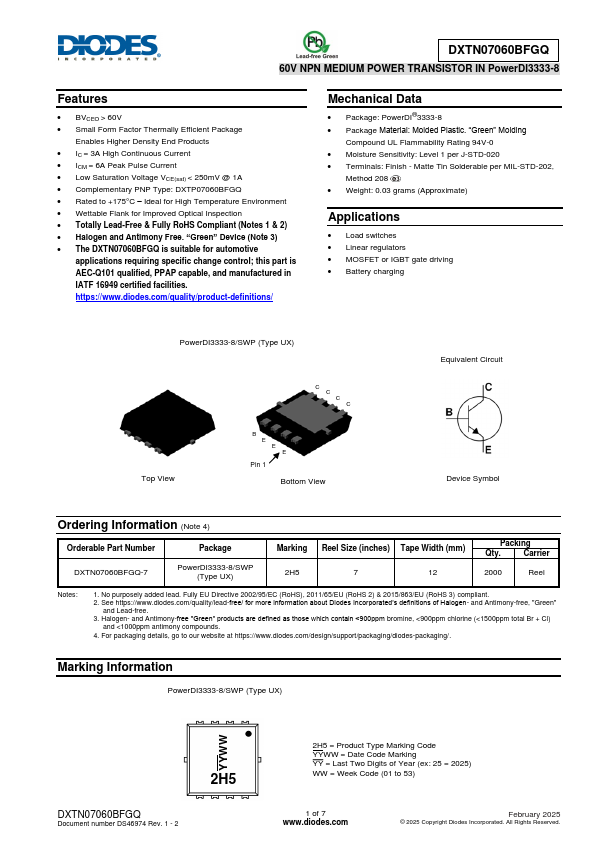

DXTN07060BFGQ 60V NPN MEDIUM POWER TRANSISTOR IN PowerDI3333-8 Features • BVCEO > 60V • Small Form Factor Thermally Efficient Package Enables Higher Density End Products • IC = 3A High Continuous Current • ICM = 6A Peak Pulse Current • Low Saturation Voltage VCE(sat) < 250mV @ 1A • Complementary PNP Type: DXTP07060BFGQ • Rated to +175°C – Ideal for High Temperature Environment • Wettable Flank for Improved Optical Inspection • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • The DXTN07060BFGQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
