CG2185X2 - RF SWITCH

Product Overview

CEL

📥 Download Datasheet

CG2185X2 RF SWITCH by CEL - Datasheet Preview — Datasheet preview – CG2185X2

Datasheet Details

Part number	CG2185X2
Manufacturer	CEL
File Size	780.69 KB
Description	RF SWITCH
Datasheet	CG2185X2 Datasheet
Additional preview pages of the CG2185X2 datasheet.

Product details

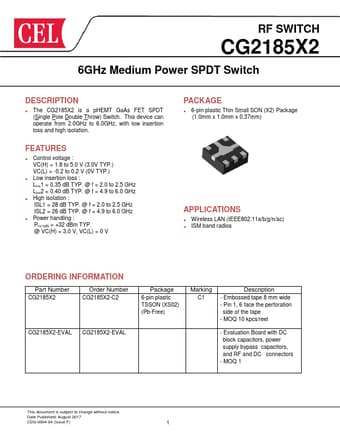

Description

The CG2185X2 is a pHEMT GaAs FET SPDT (Single Pole Double Throw) Switch.

Features

Control voltage : VC(H) = 1.8 to 5.0 V (3.0V TYP. ) VC(L) = -0.2 to 0.2 V (0V TYP. ).
Low insertion loss : Lins1 = 0.35 dB TYP. @ f = 2.0 to 2.5 GHz Lins2 = 0.40 dB TYP. @ f = 4.9 to 6.0 GHz.
High isolation : ISL1 = 28 dB TYP. @ f = 2.0 to 2.5 GHz ISL2 = 26 dB TYP. @ f = 4.9 to 6.0 GHz.
Power handling : Pin(1dB) = +32 dBm TYP. @ VC(H) = 3.0 V, VC(L) = 0 V.
