CG2163X3 - Broadband SPDT RF Switch

Product Overview

CEL

📥 Download Datasheet

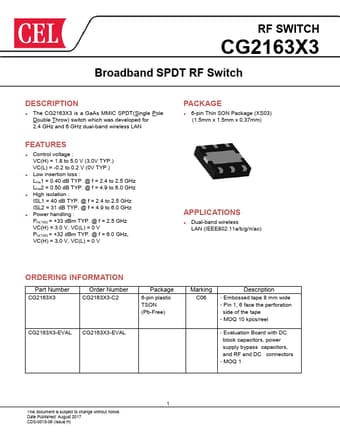

CG2163X3 Broadband SPDT RF Switch by CEL - Datasheet Preview — Datasheet preview – CG2163X3

Datasheet Details

Part number	CG2163X3
Manufacturer	CEL
File Size	1.07 MB
Description	Broadband SPDT RF Switch
Datasheet	CG2163X3 Datasheet
Additional preview pages of the CG2163X3 datasheet.

Product details

Description

The CG2163X3 is a GaAs MMIC SPDT(Single Pole Double Throw) switch which was developed for 2.4 GHz and 6 GHz dual-band wireless LAN

Features

Control voltage : VC(H) = 1.8 to 5.0 V (3.0V TYP. ) VC(L) = -0.2 to 0.2 V (0V TYP. ).
Low insertion loss : Lins1 = 0.40 dB TYP. @ f = 2.4 to 2.5 GHz Lins2 = 0.50 dB TYP. @ f = 4.9 to 6.0 GHz.
High isolation : ISL1 = 40 dB TYP. @ f = 2.4 to 2.5 GHz ISL2 = 31 dB TYP. @ f = 4.9 to 6.0 GHz.
Power handling : Pin(1db) = +33 dBm TYP. @ f = 2.5 GHz VC(H) = 3.0 V, VC(L) = 0 V Pin(1db) = +32 dBm TYP. @ f = 6.0 GHz, VC(H) = 3.0 V, VC(L) = 0 V.
