Datasheet Details
| Part number | CG24064A |
|---|---|
| Manufacturer | CLOVER DISPLAY |
| File Size | 398.02 KB |
| Description | LCD |
| Datasheet |

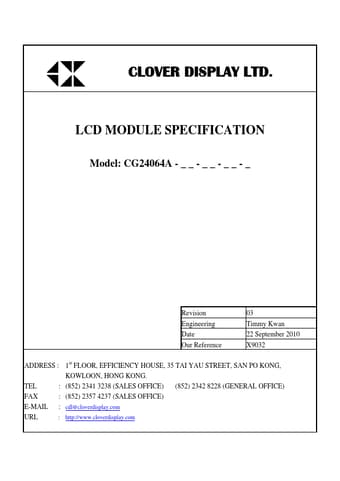

 CG24064A Datasheet
|
|
|
| Part number | CG24064A |
|---|---|
| Manufacturer | CLOVER DISPLAY |
| File Size | 398.02 KB |
| Description | LCD |
| Datasheet |
CG24064A Datasheet
|
|
|
|
Display mode : 240 X 64 dots, graphic COG LCD module Interface : Serial Driving method : 1/65 duty, 1/7 bias Controller IC : SUNPLUS SPLC502A x 2 For the detailed information, please refer to the IC specifications.MECHANICAL DIMENSIONS Item Outline Dimension Non Backlight (N) 108.0(L)x43.22(W)x 3.5 MAX(H) LED Sided Backlight(L) 108.0(L)x43.22(W)x 7.0 MAX(H) Unit Item mm Viewing Area mm Dot Pitch Dot Size Dimension 102.4(L)x30.22(W) 0.41(L)x0.41(W) 0.38(L)x0.38(W) Unit mm mm mm CO
