CG2164X3 - Dual-Band Wireless DPDT RF Switch

Product Overview

CEL

📥 Download Datasheet

CG2164X3 Dual-Band Wireless DPDT RF Switch by CEL - Datasheet Preview — Datasheet preview – CG2164X3

Datasheet Details

Part number	CG2164X3
Manufacturer	CEL
File Size	731.21 KB
Description	Dual-Band Wireless DPDT RF Switch
Datasheet	CG2164X3 Datasheet

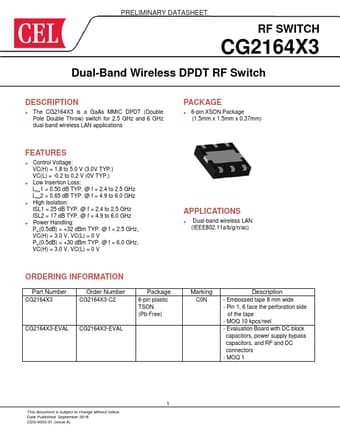

Additional preview pages of the CG2164X3 datasheet.

Product details

Description

The CG2164X3 is a GaAs MMIC DPDT (Double Pole Double Throw) switch for 2.5 GHz and 6 GHz dual-band wireless LAN applications PACKAGE 6-pin XSON Package (1.5mm x 1.5mm x 0.37mm)

Features

Control Voltage: VC(H) = 1.8 to 5.0 V (3.0V TYP. ) VC(L) = -0.2 to 0.2 V (0V TYP. ).
Low Insertion Loss: Lins1 = 0.50 dB TYP. @ f = 2.4 to 2.5 GHz Lins2 = 0.65 dB TYP. @ f = 4.9 to 6.0 GHz.
High Isolation: ISL1 = 25 dB TYP. @ f = 2.4 to 2.5 GHz ISL2 = 17 dB TYP. @ f = 4.9 to 6.0 GHz.
Power Handling: Pin(0.5dB) = +32 dBm TYP. @ f = 2.5 GHz, VC(H) = 3.0 V, VC(L) = 0 V Pin(0.5dB) = +30 dBm TYP. @ f = 6.0 GHz, VC(H) = 3.0 V, VC(L) = 0 V.
