CG2179M2 - RF SWITCH

Product Overview

CEL

Part number	CG2179M2
Manufacturer	CEL
File Size	1.16 MB
Description	RF SWITCH
Datasheet	CG2179M2 Datasheet

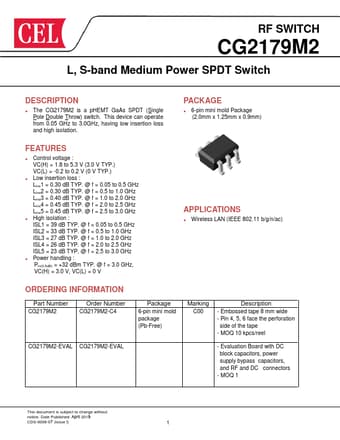

Additional preview pages of the CG2179M2 datasheet.

The CG2179M2 is a pHEMT GaAs SPDT (Single Pole Double Throw) switch. 6-pin mini mold Package (2.0mm x 1.25mm x 0.9mm)

Control voltage : VC(H) = 1.8 to 5.3 V (3.0 V TYP. ) VC(L) = -0.2 to 0.2 V (0 V TYP. ).
Low insertion loss : Lins1 = 0.30 dB TYP. @ f = 0.05 to 0.5 GHz Lins2 = 0.30 dB TYP. @ f = 0.5 to 1.0 GHz Lins3 = 0.40 dB TYP. @ f = 1.0 to 2.0 GHz Lins4 = 0.45 dB TYP. @ f = 2.0 to 2.5 GHz Lins5 = 0.45 dB TYP. @ f = 2.5 to 3.0 GHz.
High isolation : ISL1 = 39 dB TYP. @ f = 0.05 to 0.5 GHz ISL2 = 33 dB TYP. @ f = 0.5 to 1.0 GHz ISL3 = 27 dB TYP. @ f = 1.0 to 2.0 GHz ISL4 = 26 dB TYP. @ f = 2.0 to.
