CG2415M6 - RF SWITCH

Product Overview

CEL

Part number	CG2415M6
Manufacturer	CEL
File Size	758.02 KB
Description	RF SWITCH
Datasheet	CG2415M6 Datasheet

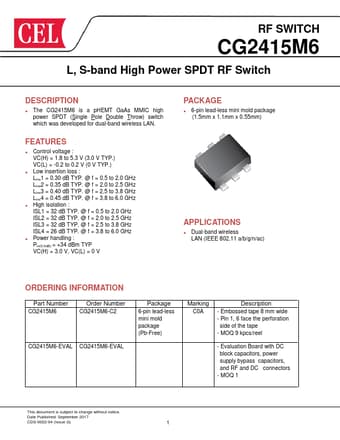

Additional preview pages of the CG2415M6 datasheet.

The CG2415M6 is a pHEMT GaAs MMIC high power SPDT (Single Pole Double Throw) switch which was developed for dual-band wireless LAN.

Control voltage : VC(H) = 1.8 to 5.3 V (3.0 V TYP. ) VC(L) = -0.2 to 0.2 V (0 V TYP. ).
Low insertion loss : Lins1 = 0.30 dB TYP. @ f = 0.5 to 2.0 GHz Lins2 = 0.35 dB TYP. @ f = 2.0 to 2.5 GHz Lins3 = 0.40 dB TYP. @ f = 2.5 to 3.8 GHz Lins4 = 0.45 dB TYP. @ f = 3.8 to 6.0 GHz.
High isolation : ISL1 = 32 dB TYP. @ f = 0.5 to 2.0 GHz ISL2 = 32 dB TYP. @ f = 2.0 to 2.5 GHz ISL3 = 32 dB TYP. @ f = 2.5 to 3.8 GHz ISL4 = 26 dB TYP. @ f = 3.8 to 6.0 GHz.
Power handling : Pin(0.5dB) =.
