GTRA364002FC - Thermally-Enhanced High Power RF GaN on SiC HEMT

Name: GTRA364002FC
SKU: GTRA364002FC-1540015

Wolfspeed

📥 Download Datasheet

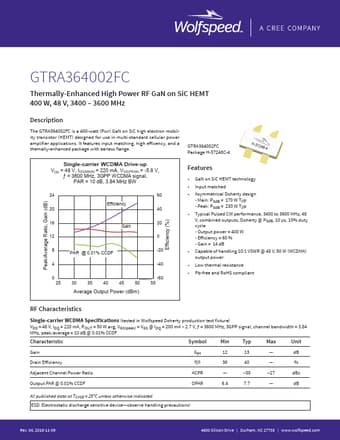

GTRA364002FC Datasheet Preview — Preview of GTRA364002FC PDF

Datasheet Details

Part number	GTRA364002FC
Manufacturer	Wolfspeed
File Size	448.65 KB
Description	Thermally-Enhanced High Power RF GaN on SiC HEMT
Datasheet	GTRA364002FC-Wolfspeed.pdf

GTRA364002FC Product details

Description

The GTRA364002FC is a 400-watt (PSAT) GaN on SiC high electron mobility transistor (HEMT) designed for use in multi-standard cellular power amplifier applications.

Features

input matching, high efficency, and a themally-enhanced package with earless flange. GTRA364002FC Package H-37248C-4 Peak/Average Ratio, Gain (dB) Efficiency (%) Single-carrier WCDMA Drive-up VDD = 48 V, IDQ(MAIN) = 220 mA, VGS(PEAK) = -5.8 V, ƒ = 3600 MHz, 3GPP WCDMA signal, PAR = 10 dB, 3.84 MHz BW 24 60 Efficiency 20 40 16 20 Gain 12 0 8 PAR @ 0.01% CCDF -20 4 -40 0 25 gtra364002fc_g1 -60 30 35 40 45 50 55 Average Output Power (dBm) Features.
GaN on SiC HEMT t.
