GTRA362002FC - Thermally-Enhanced High Power RF GaN on SiC HEMT

Name: GTRA362002FC
SKU: GTRA362002FC-1511795

Wolfspeed

📥 Download Datasheet

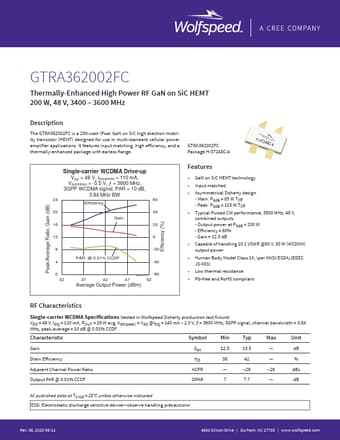

GTRA362002FC Datasheet Preview — Preview of GTRA362002FC PDF

Datasheet Details

Part number	GTRA362002FC
Manufacturer	Wolfspeed
File Size	239.54 KB
Description	Thermally-Enhanced High Power RF GaN on SiC HEMT
Datasheet	GTRA362002FC-Wolfspeed.pdf

GTRA362002FC Product details

Description

The GTRA362002FC is a 200-watt (P3dB) GaN on SiC high electron mobility transistor (HEMT) designed for use in multi-standard cellular power amplifier applications.

Features

input matching, high efficiency, and a thermally-enhanced package with earless flange. GTRA362002FC Package H-37248C-4 Peak/Average Ratio, Gain (dB) Efficiency (%) Single-carrier WCDMA Drive-up VDD = 48 V, IDQ(MAIN) = 110 mA, VGS(PEAK) = -5.5 V, ƒ = 3600 MHz, 3GPP WCDMA signal, PAR = 10 dB, 3.84 MHz BW 24 60 Efficiency 20 40 Gain 16 20 12 0 8 -20 PAR @ 0.01% CCDF 4 -40 0 32 -60 gtra362002fc_g1 37 42 47 52 Average Output Power (dBm) Features.
GaN on SiC HEMT.
