WFD430 - N-Channel MOSFET

Description

This Power MOSFET is produced using Wisdom’s advanced planar stripe, DMOS technology.

This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics.

Features

  • RDS(on) (Max 1.4 Ω )@VGS=10V Gate Charge (Typical 25nC) Improved dv/dt Capability, High Ruggedness 100% Avalanche Tested Maximum Junction Temperature Range (150°C) Symbol ◀ { 2. Drain.
  • 1. Gate { ▲.
  • { 3. Source General.

📥 Download Datasheet

Datasheet Details

Part number WFD430
Manufacturer Wisdom technologies
File Size 865.00 KB
Description N-Channel MOSFET
Datasheet download datasheet WFD430 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WFD4N60 Power MOSFET Winsemi
WFD4N60B Power MOSFET Winsemi
WFD4N65S Power MOSFET Winsemi
WFD20N06 Silicon N-Channel MOSFET Winsemi
WFD2N60B Silicon N-Channel MOSFET Winsemi

Other Datasheets by Wisdom technologies

Part Number Description
WFD4N60 N-Channel MOSFET
WFD2N60 N-Channel MOSFET
WFD5N60 HIGH VOLTAGE N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

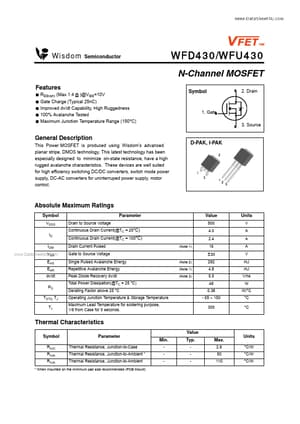

Wisdom Semiconductor WFD430/WFU430 N-Channel MOSFET Features ■ ■ ■ ■ ■ RDS(on) (Max 1.4 Ω )@VGS=10V Gate Charge (Typical 25nC) Improved dv/dt Capability, High Ruggedness 100% Avalanche Tested Maximum Junction Temperature Range (150°C) Symbol ◀ { 2. Drain ● 1. Gate { ▲ ● ● { 3. Source General Description This Power MOSFET is produced using Wisdom’s advanced planar stripe, DMOS technology. This latest technology has been especially designed to minimize on-state resistance, have a high rugged avalanche characteristics. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supply, DC-AC converters for uninterruped power supply, motor control. D-PAK, I-PAK 2 1 3 1 2 3 Absolute Maximum Ratings Symbol VDSS ID IDM VGS www.DataSheet4U.
