VBT3060C Dual High Voltage Trench MOS Barrier Schottky Rectifier

VBT3060C Description

www.vishay.com VT3060C, VFT3060C, VBT3060C, VIT3060C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low .

VBT3060C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

VBT3060C Applications

* For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, DC/DC converters and reverse battery protection. 2 1 VBT3060C PIN 1 K PIN 2 HEATSINK VIT3060C 3 2 1 PIN 1 PIN 2 PIN 3 K PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TJ max. Pac

📥 Download Datasheet

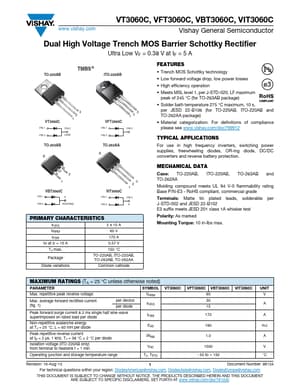

Preview of VBT3060C PDF
