VBT4045C Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

VBT4045C Description

New Product VBT4045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.28 V at IF = 5.0 A TMBS ® .

VBT4045C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C 2 K
* Not recommended for PCB bottom side wave mounting
* Compliant to RoHS Direct

VBT4045C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A TJ max. 2 x 20 A 45 V 240 A 0.41 V 150 °C MECHANICAL DATA Case: TO-263AB Molding compound meets UL 94 V-

📥 Download Datasheet

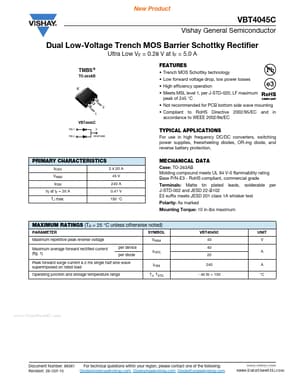

Preview of VBT4045C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT4045C
Manufacturer
Vishay ↗ Siliconix
File Size
99.20 KB
Datasheet
VBT4045C_VishaySiliconix.pdf
Description
Dual Low-Voltage Trench MOS Barrier Schottky Rectifier
