VBT4045BP-E3 Trench MOS Barrier Schottky Rectifier

VBT4045BP-E3 Description

www.vishay.com VBT4045BP-E3 Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0..

VBT4045BP-E3 Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912

VBT4045BP-E3 Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. MECHANICAL DATA Case: D2PAK (TO-263AB) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant and commercial grade Terminals: Matte tin plated leads, solder

📥 Download Datasheet

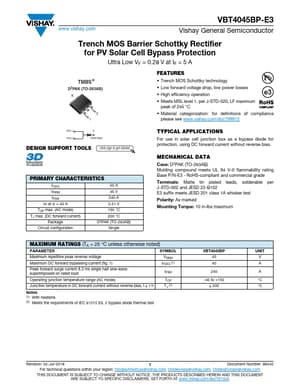

Preview of VBT4045BP-E3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT4045BP-E3
Manufacturer
Vishay ↗
File Size
97.84 KB
Datasheet
VBT4045BP-E3-Vishay.pdf
Description
Trench MOS Barrier Schottky Rectifier
