VBT3045C Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

VBT3045C Description

www.vishay.com VBT3045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.30 V at IF = 5.0 A TMB.

VBT3045C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020,  LF maximum peak of 245 °C
* Material categorization: for definitions of compliance please see www. vishay. com/doc?999

VBT3045C Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 15 A TJ max. Package 2 x 15 A 45 V 200 A 0.39 V 150 °C D2PAK (TO-263AB) Circuit configura

📥 Download Datasheet

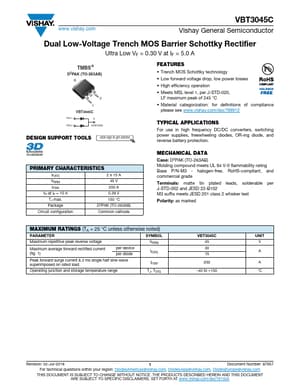

Preview of VBT3045C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBT3045C
Manufacturer
Vishay ↗ Siliconix
File Size
97.80 KB
Datasheet
VBT3045C_VishaySiliconix.pdf
Description
Dual Low-Voltage Trench MOS Barrier Schottky Rectifier
