LR38616 - Timing Generator IC for 2 140 k-pixel CCDs

Sharp

The LR38616 by Sharp is a Timing Generator IC for 2 140 k-pixel CCDs. Below is the official datasheet preview.

Datasheet Details

Part number	LR38616
Manufacturer	Sharp
File Size	64.20 KB
Description	Timing Generator IC for 2 140 k-pixel CCDs
Datasheet	LR38616_SharpElectrionicComponents.pdf

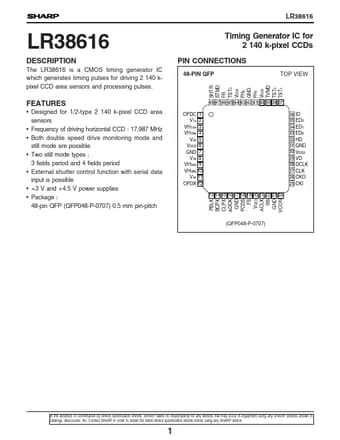

Additional preview pages of the LR38616 datasheet.

The LR38616 is a CMOS timing generator IC which generates timing pulses for driving 2 140 kpixel CCD area sensors and processing pulses.

Designed for 1/2-type 2 140 k-pixel CCD area sensors.
Frequency of driving horizontal CCD : 17.987 MHz.
Both double speed drive monitoring mode and still mode are possible.
Two still mode types : 3 fields period and 4 fields period.
External shutter control function with serial data input is possible.
+3 V and +4.5 V power supplies.
Package : 48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch OFDC 1 V1x 2 VH1Ax 3 VH1Bx 4 V2x 5 VDD3 6 GND 7.
