LR3866 - 3.0A LOW DROPOUT LINEAR REGULATOR

UTC

The LR3866 by UTC is a 3.0A LOW DROPOUT LINEAR REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

LR3866 3.0A LOW DROPOUT LINEAR REGULATOR by UTC - Datasheet Preview — Official preview page of the **LR3866** 3.0A LOW DROPOUT LINEAR REGULATOR datasheet (UTC).

Datasheet Details

Part number	LR3866
Manufacturer	UTC
File Size	249.60 KB
Description	3.0A LOW DROPOUT LINEAR REGULATOR
Datasheet	LR3866-UTC.pdf

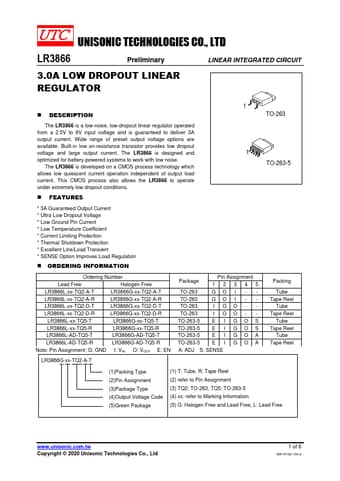

Additional preview pages of the LR3866 datasheet.

LR3866 Product details

Description

1 TO-263 The LR3866 is a low-noise, low-dropout linear regulator operated from a 2.5V to 6V input voltage and is guaranteed to deliver 3A output current.Wide range of preset output voltage options are available.Built-in low on-resistance transistor provides low dropout voltage and large output current.The LR3866 is designed and optimized for battery-powered systems to work with low noise.The LR3866 is developed on a CMOS process technology which allows low quiescent current operation indep

Features

S 1 TO-263-5.
3A Guaranteed Output Current.
Ultra Low Dropout Voltage.
Low Ground Pin Current.
Low Temperature Coefficient.
Current Limiting Protection.
Thermal Shutdown Protection.
Excellent Line/Load Transient.
SENSE Option Improves Load Regulation.
