LR38666Y - CMOS digital signal processor

Sharp Electrionic

📥 Download Datasheet

LR38666Y Datasheet Preview — Preview of LR38666Y PDF

Datasheet Details

Part number	LR38666Y
Manufacturer	Sharp Electrionic
File Size	224.30 KB
Description	CMOS digital signal processor
Datasheet	LR38666Y_SharpElectrionic.pdf

LR38666Y Product details

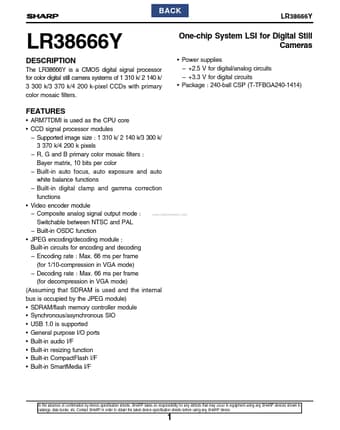

Description

The LR38666Y is a CMOS digital signal processor for color digital still camera systems of 1 310 k/ 2 140 k/ 3 300 k/3 370 k/4 200 k-pixel CCDs with primary color mosaic filters. Power supplies +2.5 V for digital/analog circuits +3.3 V for digital circuits Package : 240-ball CSP (T-TFBGA240-1414)

Features

ARM7TDMI is used as the CPU core.
CCD signal processor modules.
Supported image size : 1 310 k/ 2 140 k/3 300 k/ 3 370 k/4 200 k pixels.
R, G and B primary color mosaic filters : Bayer matrix, 10 bits per color.
Built-in auto focus, auto exposure and auto white balance functions.
Built-in digital clamp and gamma correction functions.
Video encoder module www. DataSheet4U. com.
Composite analog signal output mode : Switchable.
