LR38266 - Digital Signal Processor for Color CCD Cameras

Sharp

The LR38266 by Sharp is a Digital Signal Processor for Color CCD Cameras. Below is the official datasheet preview.

Datasheet Details

Part number	LR38266
Manufacturer	Sharp
File Size	92.40 KB
Description	Digital Signal Processor for Color CCD Cameras
Datasheet	LR38266_SharpElectrionicComponents.pdf
Additional preview pages of the LR38266 datasheet.

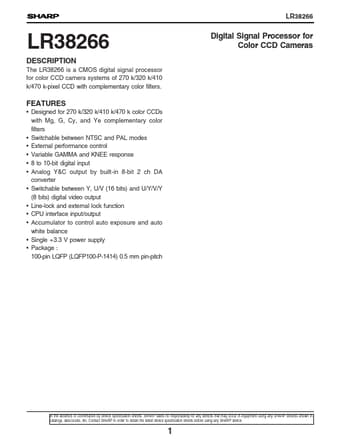

The LR38266 is a CMOS digital signal processor for color CCD camera systems of 270 k/320 k/410 k/470 k-pixel CCD with complementary color filters.

Designed for 270 k/320 k/410 k/470 k color CCDs with Mg, G, Cy, and Ye complementary color filters.
Switchable between NTSC and PAL modes.
External performance control.
Variable GAMMA and KNEE response.
8 to 10-bit digital input.
Analog Y&C output by built-in 8-bit 2 ch DA converter.
Switchable between Y, U/V (16 bits) and U/Y/V/Y (8 bits) digital video output.
Line-lock and external lock function.
CPU interface in.
