LR38575 - Timing Generator IC

Sharp Electrionic Components

Datasheet Details

Part number	LR38575
Manufacturer	Sharp Electrionic Components
File Size	128.77 KB
Description	Timing Generator IC
Datasheet	LR38575_SharpElectrionicComponents.pdf

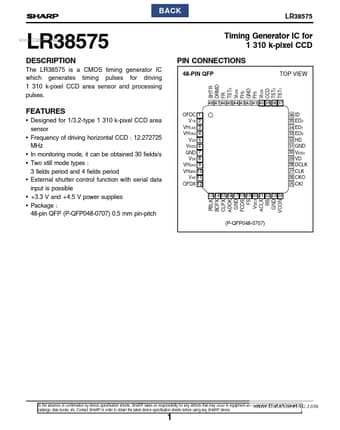

The LR38575 is a CMOS timing generator IC which generates timing pulses for driving 1 310 k-pixel CCD area sensor and processing pulses.

Designed for 1/3.2-type 1 310 k-pixel CCD area sensor.
Frequency of driving horizontal CCD : 12.272725 MHz.
In monitoring mode, it can be obtained 30 fields/s.
Two still mode types : 3 fields period and 4 fields period.
External shutter control function with serial data input is possible.
+3.3 V and +4.5 V power supplies.
Package : 48-pin QFP (P-QFP048-0707) 0.5 mm pin-pitch OFDC 1 V1X 2 VH1AX 3 VH1BX 4 V2X 5 VDD3 6 GND 7 V3X 8 VH3.
