LR38580 - Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation

Sharp

The LR38580 by Sharp is a Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation. Below is the official datasheet preview.

📥 Download Datasheet

LR38580 Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation by Sharp - Datasheet Preview — Official preview page of the **LR38580** Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation datasheet (Sharp).

Datasheet Details

Part number	LR38580
Manufacturer	Sharp
File Size	64.65 KB
Description	Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation
Datasheet	LR38580_SharpElectrionicComponents.pdf

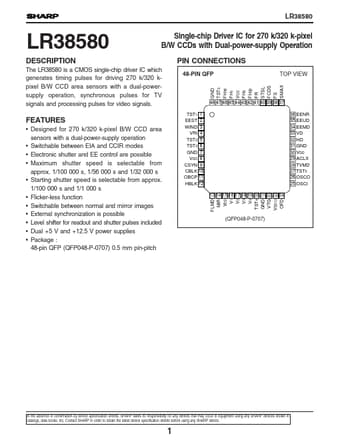

Additional preview pages of the LR38580 datasheet.

LR38580 Product details

Description

Single-chip Driver IC for 270 k/320 k-pixel B/W CCDs with Dual-power-supply Operation PIN CONNECTIONS 48-PIN QFP TOP VIEW The LR38580 is a CMOS single-chip driver IC which generates timing pulses for driving 270 k/320 kpixel B/W CCD area sensors with a dual-powersupply operation, synchronous pulses for TV signals and processing pulses for video signals.48 47 46 45 44 43 42 41 40 39 38 37 TST1 1 EEST 2 WIND 3 VRI 4 TST2 5 TST3 6 GND 7 VDD 8 CSYN 9 CBLK 10 OBCP 11 HBLK 12 13 14 15 16 17 18 19

Features

Designed for 270 k/320 k-pixel B/W CCD area sensors with a dual-power-supply operation.
Switchable between EIA and CCIR modes.
Electronic shutter and EE control are possible.
Maximum shutter speed is selectable from approx. 1/100 000 s, 1/56 000 s and 1/32 000 s.
Starting shutter speed is selectable from approx. 1/100 000 s and 1/1 000 s.
Flicker-less function.
Switchable between normal and mirror images.
External synchroni.
