LR38516 - Timing Generator IC for 350 k-pixel Progressive Scan Color CCDs

Sharp

The LR38516 by Sharp is a Timing Generator IC for 350 k-pixel Progressive Scan Color CCDs. Below is the official datasheet preview.

📥 Download Datasheet

LR38516 Timing Generator IC for 350 k-pixel Progressive Scan Color CCDs by Sharp - Datasheet Preview — Official preview page of the **LR38516** Timing Generator IC for 350 k-pixel Progressive Scan Color CCDs datasheet (Sharp).

Datasheet Details

Part number	LR38516
Manufacturer	Sharp
File Size	66.23 KB
Description	Timing Generator IC for 350 k-pixel Progressive Scan Color CCDs
Datasheet	LR38516_SharpElectrionicComponents.pdf

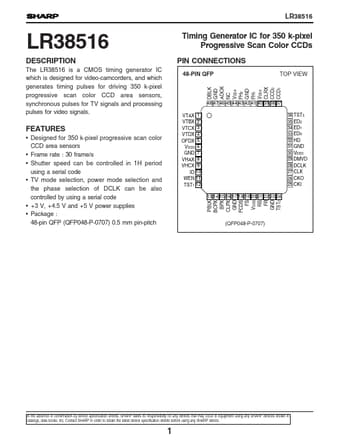

Additional preview pages of the LR38516 datasheet.

LR38516 Product details

Description

The LR38516 is a CMOS timing generator IC which is designed for video-camcorders, and which generates timing pulses for driving 350 k-pixel progressive scan color CCD area sensors, synchronous pulses for TV signals and processing pulses for video signals.

Features

Designed for 350 k-pixel progressive scan color CCD area sensors.
Frame rate : 30 frame/s.
Shutter speed can be controlled in 1H period using a serial code.
TV mode selection, power mode selection and the phase selection of DCLK can be also controlled by using a serial code.
+3 V, +4.5 V and +5 V power supplies.
Package : 48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch In the absence of confirmation by device specification sheets, SHARP takes n.
