LR38269 - Digital Signal Processor for Color CCD Cameras

Sharp

The LR38269 by Sharp is a Digital Signal Processor for Color CCD Cameras. Below is the official datasheet preview.

Datasheet Details

Part number	LR38269
Manufacturer	Sharp
File Size	93.13 KB
Description	Digital Signal Processor for Color CCD Cameras
Datasheet	LR38269_SharpElectrionicComponents.pdf

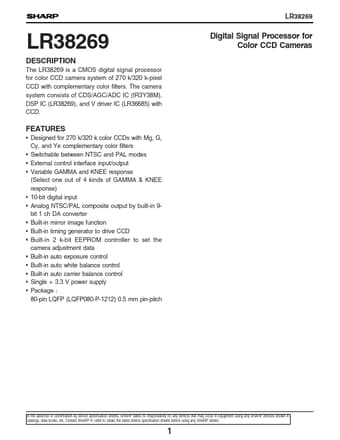

Additional preview pages of the LR38269 datasheet.

The LR38269 is a CMOS digital signal processor for color CCD camera system of 270 k/320 k-pixel CCD with complementary color filters.

Designed for 270 k/320 k color CCDs with Mg, G, Cy, and Ye complementary color filters.
Switchable between NTSC and PAL modes.
External control interface input/output.
Variable GAMMA and KNEE response (Select one out of 4 kinds of GAMMA & KNEE response).
10-bit digital input.
Analog NTSC/PAL composite output by built-in 9bit 1 ch DA converter.
Built-in mirror image function.
Built-in timing generator to drive CCD.
