2SD2335 - SILICON POWER TRANSISTOR

📥 Download Datasheet

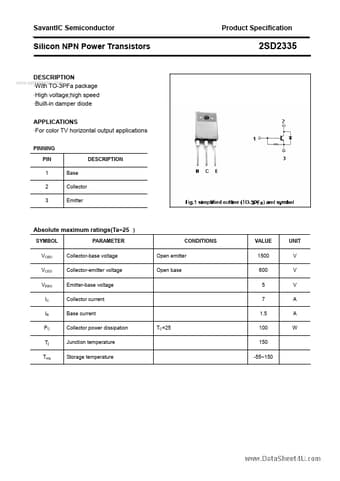

Preview of 2SD2335 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD2335
Manufacturer SavantIC
File Size 143.96 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD2335_SavantIC.pdf

2SD2335 Product details

Description

With TO-3PFa package High voltage;high speed Built-in damper diode APPLICATIONS For color TV horizontal output applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base VALUE 1500
