2SD2331 - NPN Transistor

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed High Reliability Built-in Damper Diode Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD2331 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD2333 - Silicon NPN Power Transistor (SavantIC)
  • 2SD2335 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD2337 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SD2300 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SD2300 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD2318 - High-current gain Power Transistor (Rohm)
  • 2SD2318F5 - Triple Diffused Planar NPN Silicon Transistor (Rohm)
  • 2SD2321 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SD2324 - NPN Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

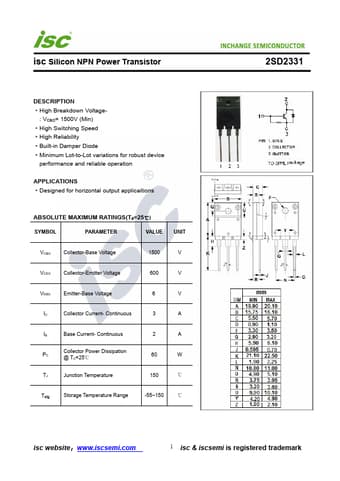

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD2331 DESCRIPTION ·High Breakdown Voltage- : VCBO= 1500V (Min) ·High Switching Speed ·High Reliability ·Built-in Damper Diode ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 3 A IB Base Current- Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 2 A 60 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
