2SD2340 - SILICON POWER TRANSISTOR

📥 Download Datasheet

Preview of 2SD2340 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SD2340
Manufacturer SavantIC
File Size 162.86 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD2340_SavantIC.pdf

2SD2340 Product details

Description

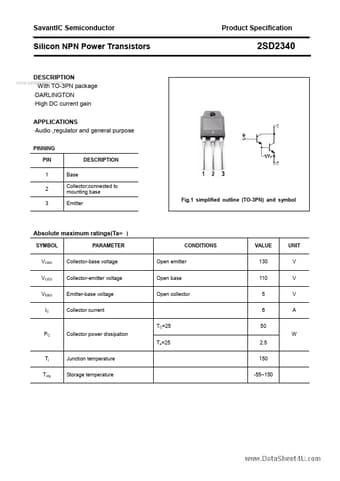

With TO-3PN package DARLINGTON High DC current gain APPLICATIONS Audio ,regulator and general purpose PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperature 2.5 15
