2SD2348 - NPN Transistor

The 2SD2348 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

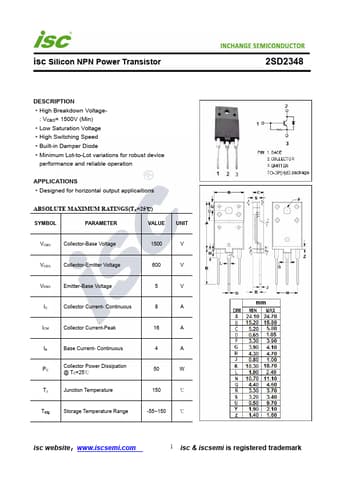

Official preview page of the 2SD2348 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD2348
Manufacturer INCHANGE
File Size 202.99 KB
Description NPN Transistor
Datasheet download datasheet 2SD2348-INCHANGE.pdf
Additional preview pages of the 2SD2348 datasheet.

2SD2348 Product details

Description

High Breakdown Voltage- : VCBO= 1500V (Min) Low Saturation Voltage High Switching Speed Built-in Damper Diode Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for horizontal output applicaitions ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 8
