2SD2324 - NPN Epitaxial Planar Silicon Transistor

Name: 2SD2324
SKU: 2SD2324-240689

Sanyo Semicon Device

The 2SD2324 by Sanyo Semicon Device is a NPN Epitaxial Planar Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SD2324
Manufacturer	Sanyo Semicon Device
File Size	66.27 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	2SD2324_SanyoSemiconDevice.pdf

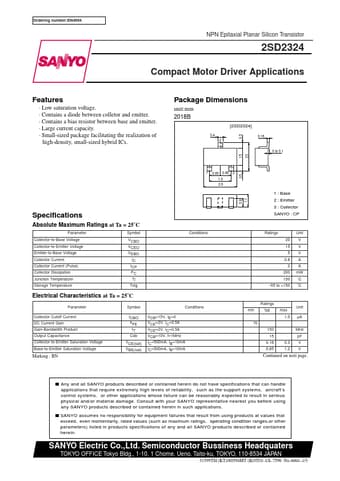

Additional preview pages of the 2SD2324 datasheet.

Low saturation voltage.
Contains a diode between colletor and emitter.
Contains a bias resistor between base and emitter.
Large current capacity.
Small-sized package facilitating the realization of high-density, small-sized hybrid ICs. Package Dimensions unit:mm 2018B [2SD2324] 0.4 3 0.16 0 to 0.1 0.5 1.5 0.5 2.5 1 0.95 0.95 2 1.9 2.9 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitt.
