STP9NK60ZFP, STP9NK60Z N-CHANNEL Power MOSFET

STP9NK60ZFP Description

STB9NK60Z, STP9NK60Z, STP9NK60ZFP N-channel 600 V, 0.85 Ω typ., 7 A Zener-protected SuperMESH™ Power MOSFET in D²PAK, TO-220 and TO-220FP packages Da.
These devices are N-channel Zener-protected Power MOSFETs developed using STMicroelectronics' SuperMESH™ technology, achieved through optimization of.

STP9NK60ZFP Features

* Order codes STB9NK60ZT4 STP9NK60Z STP9NK60ZFP VDS RDS(on) max ID PTOT 600 V 125 W 0.95 Ω 7 A 30 W
* Extremely high dv/dt capability
* Improved ESD capability
* 100% avalanche tested
* Gate charge minimized
* Very low intrinsic capacitances TAB 3 1 D2PAK TAB 3 2 1 TO-220

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP9NK60ZFP, STP9NK60Z. Please refer to the document for exact specifications by model.

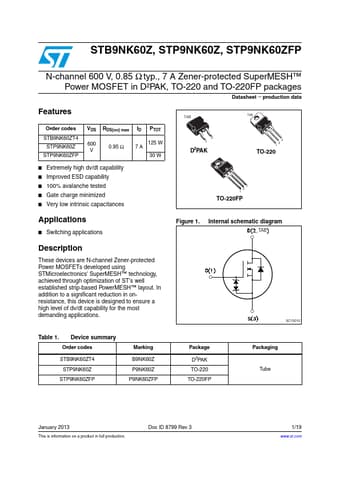

datasheet Preview Page 2 datasheet Preview Page 3
